18 Station Sheet Roll Forming Machine Roller Shutter Door Roll Forming Machine
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
40-60 days
Brand:
HENGRUIYANG
Product Description

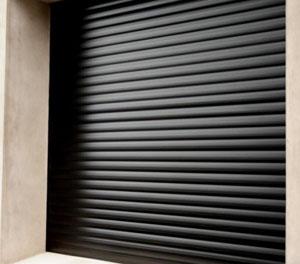

High speed Steel & matel roll shutter door roll forming machine 5.5kw 18 station roll forming machine
Technical Date:
| 1 | Processing Material | PPGI;GI |
| 2 | Processing Thickness | 0.3-0.8mm |
| 3 | Material of Roller | 45#steel |
| 4 | Material of Shafts | 45#steel |
| 5 | Total Power | 8kw |
| 6 | Material of Cutting Blades | Cr12 |
| 7 | Brand of PLC | Delta/Mitsubishi/Siemens |
| 8 | Production Speed | 12-15m/min |
| 9 | Brand of Frequency Converter | Schneider |
| 10 | Transmission Type | Chain transmission+Decelerating motor |
| 11 | Voltage | 380V 50HZ or as your requirement |
| 12 | Cutting Type | Mold Cutting |
Station Formation: 11 Stations
Shaft Diameter: 50mm
Machine Stand: Column Type
Machine Frame: Welded Carbon Steel
Roller Material: Cr12
Shaft Material: 45 # Tempered And Tempered Steel
Work Speed: 15-25m / min
Bearing: Roller Bearing
Transmission: By Gear
Motor Power: 5.5kw
Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 119mm coil sheet |
| 2 | Thickness of feeding material | 0.8mm-1.2mm coil sheet |
| 3 | Roller station | 12 stations |
| 4 | Shaft Diameter | 50mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2 ton |
| 9 | length | 5.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 1.5Tons |
| 13 | Motor | 5.5KW |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1 inch |
| 16 | Cutting system | Hydraulic cutter |
