17 Station Single Layer Roll Forming Machine 12m/min

2. Because in the African Market , Many Customers used the thinner thickness of the sheet (0.13mm-0.3mm thickness) if you used the normally roll forming machine , the thinner thickness of the sheet is very easy rebound ,So we manufactured the Thinner Corrugated Sheet Roll Forming Machine, The different of this thinner Corrugated Sheet Roll Forming Machine with the Normally corrugated sheet roll forming machine . The Thinner Corrugated Sheet roll forming machine is Horizontal form the sheet, the normally corrugated sheet roll forming machine is vertical formed the sheet.

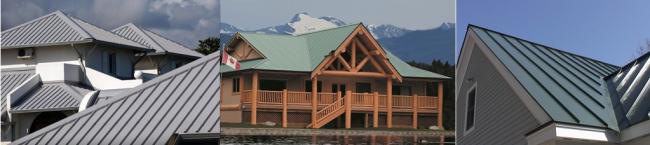

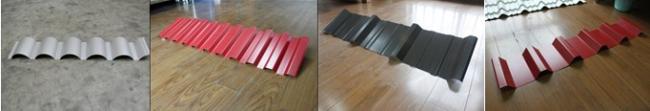

3. The thinner thickness of the sheet after formed by Thinner Corrugated Sheet Roll Forming Machine are widely used for the roof sheet of the house.

Main Technical Specifications

• Coil material thickness: 0.18-0.35mm
• Material: Galvanized color steel, G550mpa
• Roll forming machine: 4.2 meters length
• Rolling speed: 12-15m/min
• Roller stations:17 stations
• Roller material: 45# forge steel, coated with chrome
• Shaft diameter: 100mm
• Transmission: By gears
• Material of chain: 45# forged steel with frequency quenching
• Material of cutting: Cr12Mov with quench HRC58-62
• Voltage: 220V, 50HZ,3 PH (depend on customer requirement)
