2 Ton Rolling Shutter Door Slats Roll Forming Machine

Track Rails Forming Machine Roll Shutter Door Forming Machine Aluminum Material

Shutter door forming machine according to our knowledge there are serval types: European style shutter door machine, Australia style shutter door machine, shutter door with big holes, shutter door with perforation holes machine, shutter door U stud forming machine and others. Roller shutter door forming machine is extensively used in industrial and commercial fields, retail areas, airports, hotels, institutions, malls, and shopping centers. Our roller shutter door roll forming machines are also designed for warehouses, dock doors, distribution outlets, food concession stands, hospitals, storefronts, and oil-rig platforms.

Main Components

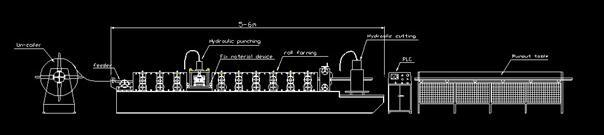

Working Flowing

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table-discharging

Parameter

Un-coiler

1. Capacity: 2 tons

2. Material: #45 steel quenched

3. Inner diameter: 410~ 580mm

Main roll former

1. Stations: 20

2. Rollers material: CR 15; HRC 60. Chrome coated: 0.03~0.05mm. The Strength in Mpa: 70 TON,800 MPA

3. Shaft material: Diameter: 50mm, the material is #45 steel. Quenched: hot treatment. The strength of the Main Shaft in Mpa:70 tons, 650MPA

4. Bearing Brand: FAG Germany

Cutting

1. Cutting motion: The main machine falying saw cutting

2. The material of blade: CR12 with heat treatment

3. Length measuring: Automatically

4. Tolerance of length: 10m+/-0.5mm

5. Cutting way: The main machine falying saw cutting

6.  Encoder: OMRON Brand

Control Box:

1. adjusted with the requirement

2. Length & quantity measurement automatically;

3. Length & quantity controlled by PLC,

4. Length inaccuracy can be amended easily.

6. Control panel: Button-type switch and touch screen

7. Unit of length: millimeter (switched on the control panel)

Our Advantage

1. Our company provides high-quality products and offers a reasonable price.

2. Any parts damaged because of a quality problem will be changed for free within the first year.

3. Technical support is provided for free at the whole life of the machine.

4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.

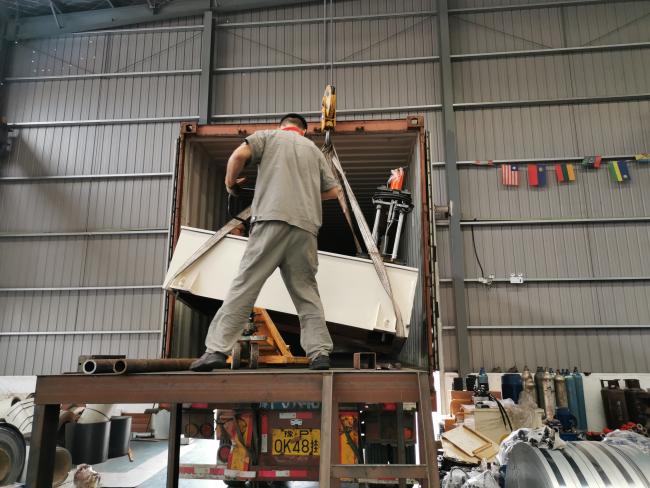

5. We have professional technicians for loading to guarantee the goods load into the container without any damage.
