Large Capacity Pu Sandwich Panel Line Max Panel Width 1000mm & Max Panel Thickness 150mm

Machine Introduction

Rockwool sandwich panel production line could make the EPS core and Rockwool sandwich panel. This sandwich panel product line adopts PLC and touch screen controlling system. It could make both roof and wall sandwich panel with core of polystyrene foam and rockwool material. Due to its simple operation, this forming machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings. In order to satisfy various customer requirements, we design and manufacture rockwool sandwich panel lines in different specs, models and configurations.

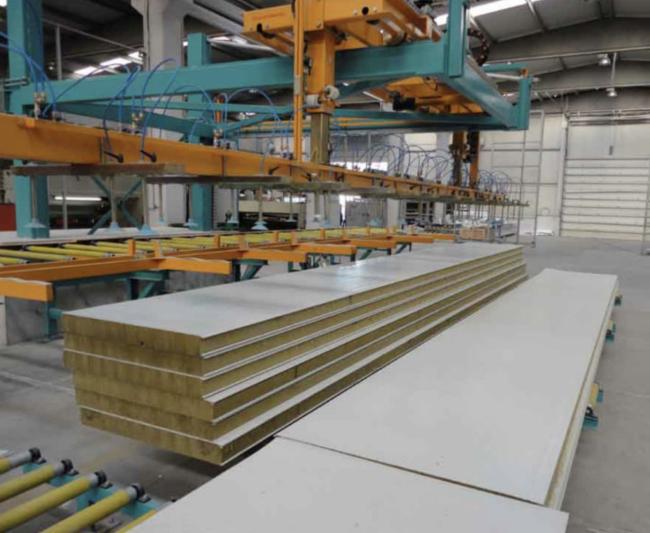

Produse Photo

1.The SP-PU-C Colored Steel Sandwich Panel Production Line mainly consists of the two sets of Uncoiler, Steel Panel Transverse Cutting Machine, Steel Panel Surface PVC Film covering device, Roll forming machine (3 sets) and Platform (up and down), Pre-heating room, PU injecting section for foaming, Panel automatically cutting system and Cooling system conveyer, Automatic stacking machine;

2. Foaming and the maturing double belt machine includes hydraulic pressure control system (24 meters length) and 4 sets side nylon seal blocks to make wall panel and roof panel;

3. Using heated air recycle oven, the temperature of PU foaming and solidification strictly controlled.

4. Production capacity of this production line: 3-8m/min.
Panel width: 800-1000mm, panel thickness: 30-150mm.
Total power: about 150kw, working pressure on pouring foam: 150-200bar (high pressure foaming);

5. Valid length of double belt conveyer: 24m.
