3.0mm C And Z Purlin Roll Forming Machine Truss Exchange
1.5 - 3.0mm Thickness steel CZ purline truss exchange rolling forming machine
Product description
CZ changeable purlin roll former can produce both c and z purlin with different specifications in one machine. The change from C and Z will be done by manual adjustment, which is can be easily done. There is also not necessary to change the rollers if producing different size of C or Z purlins. It can automatically cut to length, punch and forming, workers just need to set the length, hole distance, quantity, etc into the control system. Produce from C to Z purlin by switch one side roller, only need about 15 minutes. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.
|
5T manual decoiler
|
|
|
Steel coil width
|
from 200 mm to 600 mm
|
|
Internal diameter of coil
|
variable, from 470 mm to 510 mm
|
|
Maximal out diameter
|
1600mm
|
|
Maximum coil weight
|
5000 Kg
|
|
Working speed
|
0-15m/min adjustable
|
|
Main motor power
|
5.5KW AC motor
|
|
Hydraulic power
|
3kw
|
|
Forming Section
|
|
|
Material of the profile
|
teel sheets for cold bending according to EN 10346 or equivalent requirements
|
|
Thickness range
|
1.5-3.0mm
|
|
Main motor power
|
15kw, AC motor, motor inside of main machine(according the final design)
|
|
Roll station
|
20 station
|
|
Shaft diameter
|
￠76mm
|
|
Machine roll forming speed
|
not less than 10 meters per minute
|
|
Transmission
|
by gear box for each station
|
|
Correction adjust system
|
|
|
Function
|
make the end product in straight, left and right, up and down
|
|
Adjust by hand wheel, manual
|
|
|
Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree ,CNC,
|
|
|
Color
|
blue or base on customer request
|
|
Quantity
|
1 unit
|
|
Output table
|
|
|
Frame
|
welding by tube
|
|
Size
|
about 2.0m long*0.6mwide*0.9mhigh
|
|
One out table with two support roller
|
|
|
Supporter roller
|
ASTM 1045 with chrome
|
|
Diameter of rollers
|
55mm
|
|
Quantity
|
5units
|
|
Hydraulic station
|
|
|
Hydraulic power
|
5.5kw
|
|
Working pressure
|
12-16Mpa adjustable
|
|
Solenoid valve
|
3 groups
|
|
Hydraulic oil
|
46# hydraulic oil
|
|
Color
|
Blue (or base on customer request)
|
|
Quantity
|
1
|
|
Control desk
|
|
|
Programmable setting of profile length and quantity
|
|
|
Automatic stopping of the equipment after completion of the cutting programme will be provided.
|
|
|
language
|
English and Chinese
|
|
Voltage, Frequency, Phase
|
380 V, 50 Hz, 3Phase
|
|
Control panel
|
Button-type switch and touch screen
|
|
Unit of length
|
millimeter
|
|
PLC brand
|
Mitsubishi |
Working flow

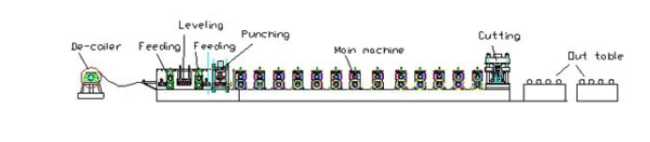

Decoiling---Leveling---Punching---Cutting---Rollforming---Hydraulic Cutting---Finished Purlins on Runout Tables
Main Features
The advantages of Automatic C Purlin Quick Change Size Roll Forming Machine when comparing with Traditional C Purlin Machines are as follows:
1. Produce different purlin sizes without changing rollers or spacers.
2. No need changing cutter for different sizes.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range), help to save material
5. Optional Punch hole at any position of purlin web side and flange side
Our services:
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long-life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
