777m3 Small Grain Storage Silos , Bulk Material Cereal Storage Silo
777m3 Bulk Material Cereal Silo ,Storage For Grain And Feed With Customized Color
Steel silo
Assembly steel silo, short for Assembly type corrugated sheet steel silo, is a kind of steel sheet silo by punching of mechanical roll and mould pressing into corrugated sheet, then to connect and assemble with the electric torque wrench by high strength bolts. The wall sheet mostly adopt technical process of rolling, and produced by the mechanical molding line. With the modern production line, we can manufacture various corrugated sheet full automatically.
Characteristic of assembly type steel silo
- Wide application
- Large capacity,
- Less investment
- Automation
All steel silo specification

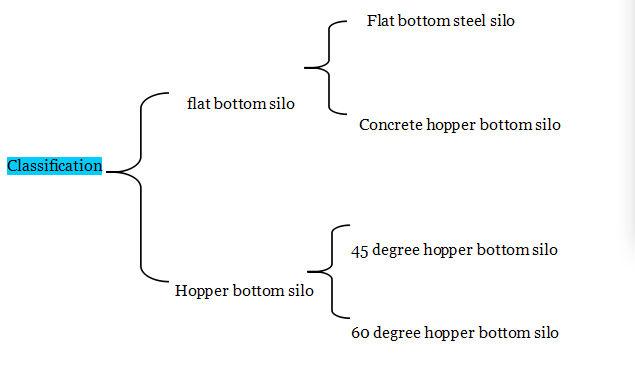

| Silo type | Hopper bottom silo | Flat bottom silo | |
| Bottom Cone Degree | 45 degree | 60 degree | NA |
| Diameter | 1.8m-11m | 1.8m-7.334m | 3.6m-20.1m |
| Capacity | 5.4t-1428t | 5.8t-755t | 30t-10682t |
| Volume | 7.2m3-1855m3 | 8.4m3-701m3 | 39m3-13873m3 |
| Accessory Equipments: | |||
| - Bucket Elevator with capacity from 1 tone/hour to 400 tone/hour - Chain Conveyor with capacity from 1 tone/hour to 400 tone/hour - Screw Conveyor with capacity from 1 tone/hour to 200 tone/hour - Elevator Towers - Electrical and Manuel controlled Slide gates - Distributors with 1 in 2/3/4/5/6 out - Catwalks - Spout Pipes |
|||
| Machines: | |||
|
Level sensors Catwalk Spout pipes Aeration system with centrifugal fan Temperature control system Sweep auger
|
|||
