Telecommunications 1x2 Plc Fiber Splitter Single mode and multi mode
Price:
Negotiable
MOQ:
50
Delivery Time:
5-8
Brand:
DAMU
Product Description
Product Description

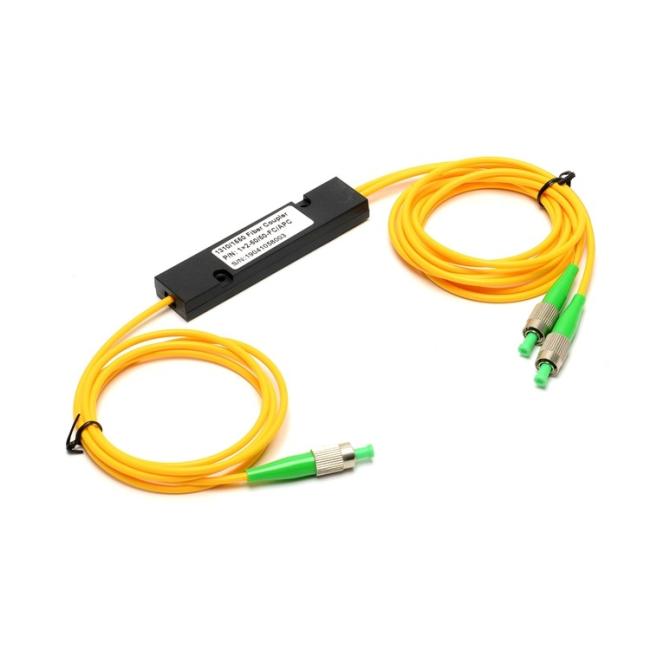

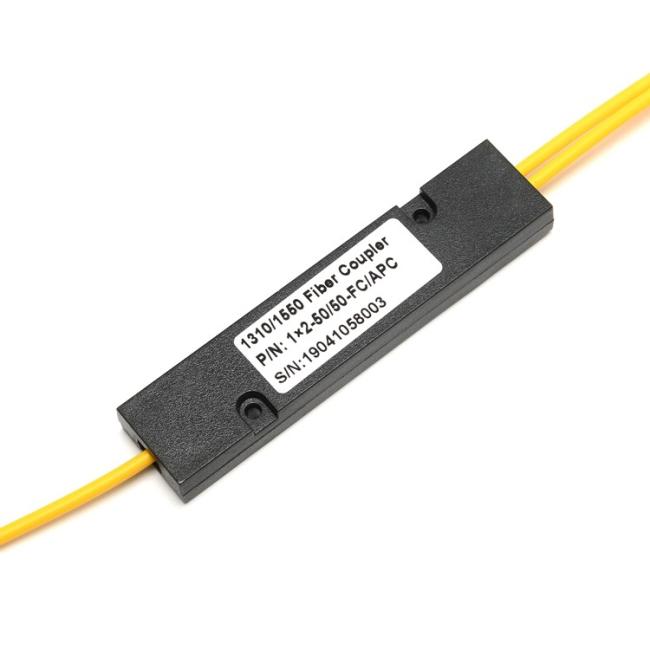

FBT Coupler Way PLC Splitters Fiber Optic Splitter 1x2 ABS PLC Splitter Low Return Loss 1x2 FC APC Fiber Optic Splitter
Description:
ABS Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
Feature:
Low Excess loss
Various Coupling Ratio
Environment stable
Single mode and multi mode available
Application:
Long-haul Telecommunications
CATV Systems & Fiber Optic Sensors
Fiber Optic communication system
Local Area Network
Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Operating Wavelength (nm) | 1310/1490/1550 | ||||
| Fiber Type | G657A1 or customer specified | ||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 17/17.4 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Stability (-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | ||||
| Storage Temperature (℃) | -40～85 | ||||
