Cassette 1x16 PLC Splitter LGX 1 Input 16 Outputs With SC APC Adapter
Price:
Negotiable
MOQ:
2pcs
Delivery Time:
Negotiable
Brand:
DAMU
Product Description

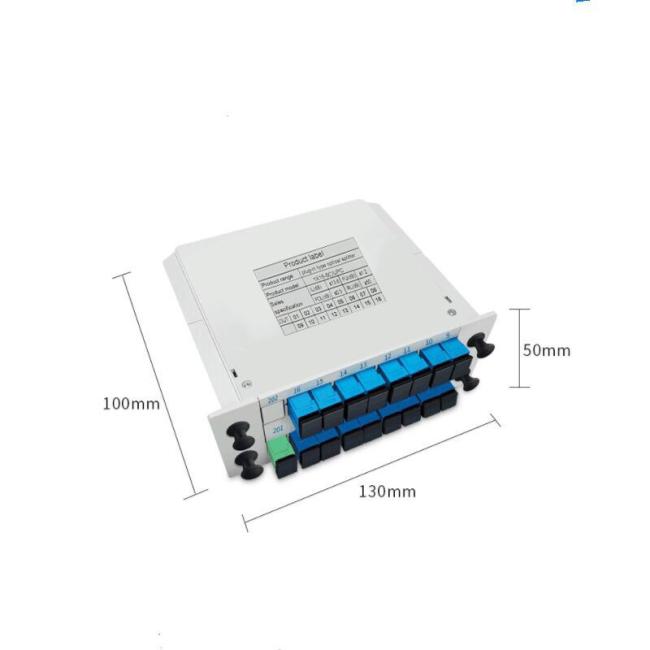

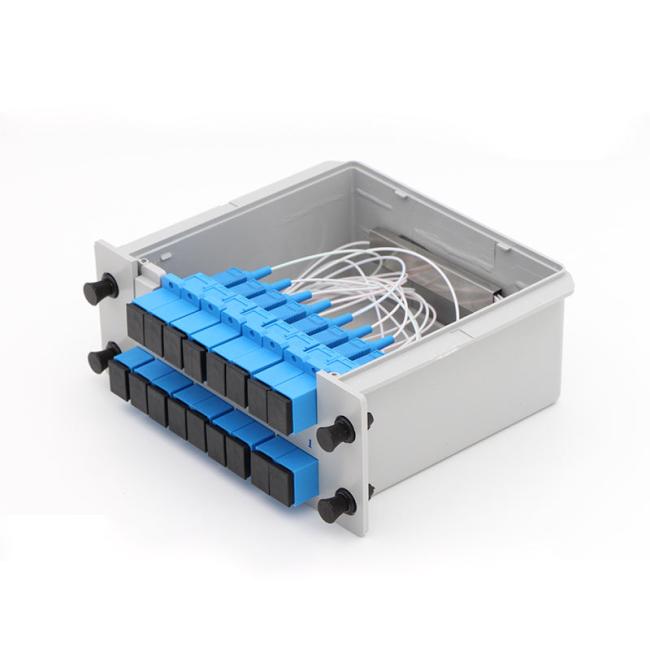

Splitter 1:16 Cassette LGX 130x100x50mm 1 input and 16 outputs with SC/APC adapter
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Application
FTTH, LAN, PON & Optical CATV
Local ring net, Optical fiber communication system
Optical fiber test equipment, Optical fiber sensor
High speed and low loss Fiber Optical Plc Splitter
| Parameter for PLC Splitter | |||||||
| Parameter | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Attenuation Value(dB) | ≤3.7 | ≤7.5 | ≤11 | ≤14.5 | ≤18 | ≤22 | |
| Loss Uniformity(dB) | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.4 | ≤1.9 | ≤2.5 | |
| Return Loss(dB) | APC | ≥60 | |||||
| UPC | ≥60 | ||||||
| PDL(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |
| Directivity(dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | |
| Operating Temperature(oC) | -40~85 | ||||||
| Storage Temperature(oC) | -40~85 | ||||||
| Operating Bandwidth(nm) | ±40 | ||||||
| Operating Wavelength(nm) | 1260~1650 |
||||||
Features
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
1).Low Insertion loss
2).Low PDL
3).Compact Design
4).Good channel-to-channel uniformity
5).Wide Operating Wavelength: 1260-1650nm
6).Wide Operating Temperature: -40°C - 85°C
7).High Reliability and Stability
