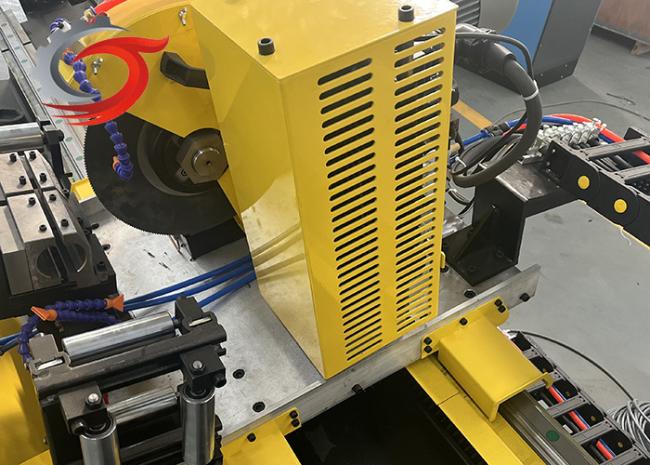

30mm Automatic Cold Saw Machine
Factory direct sales cold cutting pipe cutting pipe cold cutting flying saw machine
Introduction
Using the sawing method of cold milling, the sawing process generates little heat, avoiding the change of internal stress and material structure at the cut section, and the saw blade has a small pressure on the steel pipe, which will not cause deformation of the pipe wall orifice.
| material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX53mm | thick:0.5～2.5mm |
| Square tube:MAX40×40mm | thick:0.5～2.5mm | |
| Rectangular tube:MAX 30×50mm | thick:0.5～2.5mm | |
| Production speed | 120m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
Features
1. It can improve the quality of sawing workpiece;
2. The high-speed and soft curve reduces the impact of the machine and improves the service life of the equipment;
3. Improve sawing speed and productivity efficiency;
4. Remote operation and intelligent management system;
5. Safe and reliable.
our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
