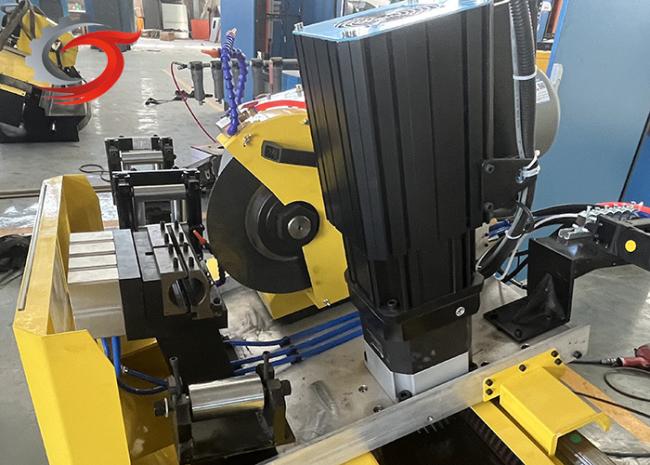

Servo 2.9kw Computer Flying Saw Single Head 1500mm CNC Cutting Machine

Price Negotiable
Price: Negotiable
MOQ: 1 set of
Delivery Time: 15-30 work days
Brand: JCCS
Product Description

Steel Pipe Cutting Machine Automatic Single Head Cutting and Saw Pipe Mill Line




Introduction
During metal sawing, the heat generated by the saw blade as it cuts the workpiece is transferred through the sawtooth to the sawdust, keeping the blade and workpiece cool. Cold cut saws are different from traditional friction saws. The friction between the workpiece and the friction saw blade results in high temperature of the friction saw and workpiece. The cold cutting saw has high section accuracy, no burrs inside and outside, smooth cutting surface, no need for post-processing such as flat head chamfering, reducing the processing strength of the next process, saving time and raw materials, and the workpiece will not be due to friction. Cutting efficiency, no spark, no noise, environmental protection and energy saving.



material Q195 Q235 SPCC
Cutting length 1500-99999mm
Length tolerance ±1.5mm(speed diviation not more than 2%);
Cutting burr height Max:0.25mm;
Power supply AC380V,3PH,50HZ



Mechanical length 4420*1280*1280mm(as per final drawing)



Motor list

Drive:15KW Yaskawa servo motor
feed: 2.9KW Yaskawa servo motor
saw: 15KW Siemens AC motor
Clamp Pneumatic
Oil supply system Auto oil filling
main shaft gearbox Special made
Gear rack KH from Chinese Taiwan
Carriage protection Safety bumpers for carriage are equipped at both ends



Features

1. Automatic control (also manual control)
2. Smooth and flat tube ends
3. Length tolerance: ±0.5mm
4. Stable and reliable
5. Quiet, higher safety
6. Large LCD touch screen.
7. High-speed and high-precision cutting.
8. Excellent cutting edge, no burr, save product cost





our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
