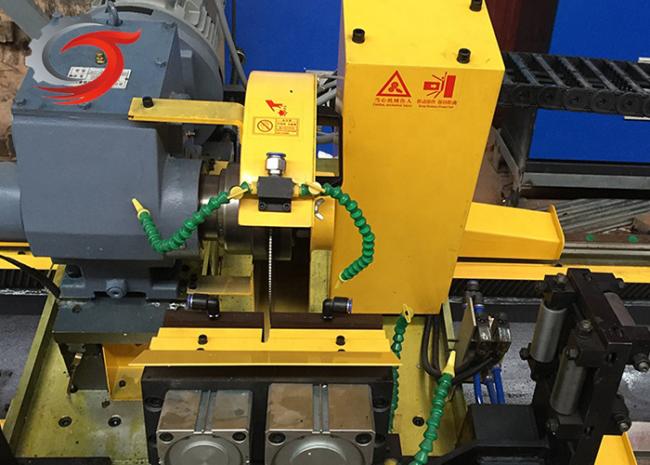

18.5kw 50hz High Speed Cold Cut Saw 89mm Flying Saw Machine
Round pipe and pipe mill pipe fly cold saw high speed cold cut saw industrial pipe
Introduction
In the production of cutting blades, metal cutting bimetallic band saw blades, and TCT circular saw blades, we have great advantages and influence in terms of talents, resources, network, scale and experience, and become one of the most competitive enterprises. one.
| Material | Q195 Q235 SPCC |
|
Cutting range |
Round tube:MAX89mm |
| Square tube:MAX65×65mm | |
| Rectangular tube:MAX 50×80mm | |
| Operation height | 750mm |
| Power supply | AC380V,3PH,50HZ |
| Mechanical length | 5420*1380*1280mm(as per final drawing) | |
|
Motor list |
Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 22KW | Siemens AC motor | |
| Clamp | hydraulic pressure | |
| Oil supply system | Auto oil filling | |
| Cable protection | Drag chain | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Low cutting time and high production speed are realized.
2. Fully automatic control by NC with user-friendly HMI interface, no need for the operator to be at the control station all the time
3. AC, DC or linear servo motor for the acceleration of the mobile trolley
Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
