Welded Low Carbon Steel Cnc Pipe Cutting Machine 90mm Tube Cold Saw

Price Negotiable
Price: Negotiable
MOQ: 1 set of
Delivery Time: 15-30 work days
Brand: JCCS
Product Description

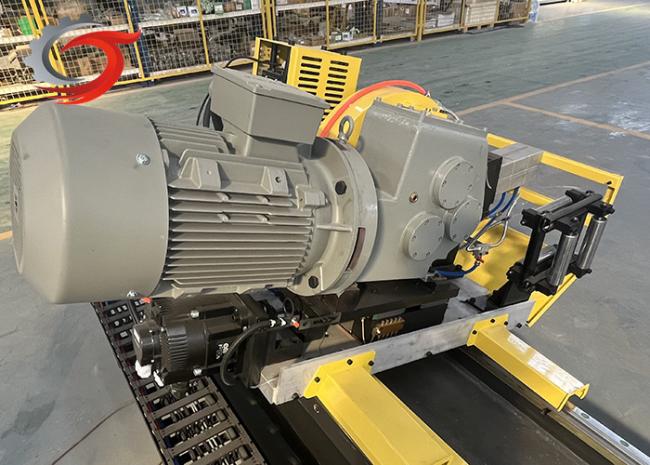

Large and small diameter pipe cutting machine Welded pipe cold cutting flying saw




Introduction
When the diameter of the pipe is more than 100mm or more and the wall thickness is more than 6mm, the double saw blade cold cutting flying saw can be considered. Although the one-time investment in purchasing equipment in the early stage is relatively high, it will save you the cost of raw materials and consumables in the subsequent daily production. The double saw blade cold cutting flying saw has stable performance and high efficiency.



Cutting range

Round tube:MAX114mm thick:0.5~4.0mm
Square tube:MAX90×90mm thick:0.5~4.0mm
Rectangular tube:MAX 50×90mm thick:0.5~4.0mm
Cutting length 1500-99999mm
Length tolerance ±1.5mm(speed diviation not more than 2%);
Feeding direction
Cutting burr height Max:0.25mm;
Power supply

AC380V,3PH,50HZ



Features

1. Equipped with adjustable cooling spray pipeline to flush the impurities and iron filings on the saw blade and clamping block;

2. Sawing method: saw blade and feed are adjustable, that is to say, the speed of the feed servo motor is variable, and the speed of the saw blade is variable, so that the utilization rate of the saw blade is greatly improved; and the saw blade wear protection system is provided.

3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating;





Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
