Remote Tube Cold Saw Carbon Steel High Speed CNC Cutting Machine

Price Negotiable
Price: Negotiable
MOQ: 1 set of
Delivery Time: 15-30 work days
Brand: JCCS
Product Description

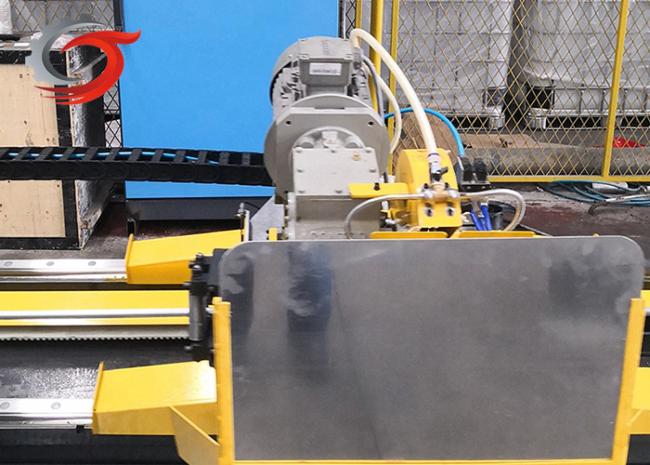

High Precision CNC Flying Cold Saw Pipe Cutting Machine High Speed Cold Cutting Pipe Mill




Introduction

Product for cutting steel tubes into burr-free fly-cold saws with a length tolerance of +/- 0.5 mm. Its purpose is to cut pipes to shorter lengths. This machine is used to cut smaller pipe lengths that were not previously possible with in-line mills.



material Q195 Q235 SPCC

Cutting range

Round tube:MAX53mm thick:0.5~2.5mm
Square tube:MAX40×40mm thick:0.5~2.5mm
Operation height 750mm
Cutting burr height Max:0.25mm;
Mechanical length 4420*1280*1280mm(as per final drawing)

Motor list

Drive:15KW PHASE servo motor
feed: 1.8KW PHASE servo motor
saw: 11KW Siemens AC motor
Linear guide Hiwin Chinese Taiwan
Gear rack KH from Chinese Taiwan
Carriage protection Safety bumpers for carriage are equipped at both ends
Equipment document User’s manual & electrical diagram


Features

1. The sawing method of cold milling is adopted, and the sawing process generates little heat, avoiding the change of internal stress and material structure at the incision section.
2. The quality of the cut end face of the workpiece processed by the high-speed steel cold cutting saw is good
3. The service life is long. The saw blade grinding machine can be used to grind the teeth for many times. The service life of the polished saw blade is the same as that of the new saw blade. Improve production efficiency and reduce costs.





our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
