Double Head Cold Saw Pipe Cutting Machine 50x90mm Flying Saw Cutter

Price Negotiable
Price: Negotiable
MOQ: 1 set of
Delivery Time: 15-30 work days
Brand: JCCS
Product Description

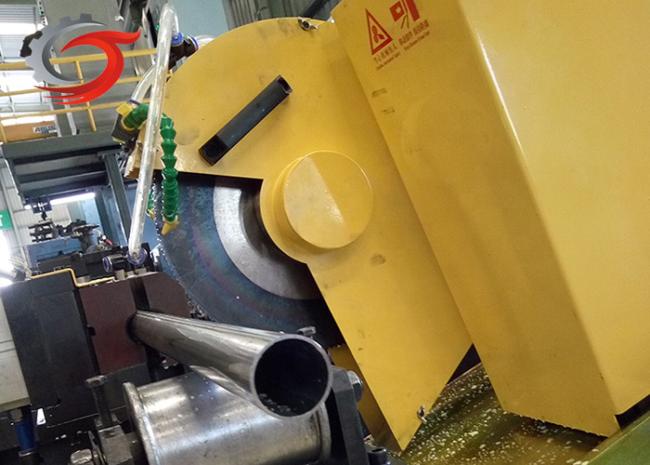

Double head cutting pipe saw ERW steel pipe making machine cold cutting flying saw




Introduction

Single and multiple head designs are available for small or large products, or reshaped into square or rectangular products. Blade surface speed is adjustable in a 5:1 speed range for optimum cutting speeds for high speed steel or carbide blades. Flying friction saws are available for very fast cutting cycles where end condition is not critical or a secondary end finish is required.



material Q195 Q235 SPCC

Cutting range

Round tube:MAX114mm thick:0.5~4.0mm
Square tube:MAX90×90mm thick:0.5~4.0mm
Rectangular tube:MAX 50×90mm thick:0.5~4.0mm
Operation height 800mm
Cutting burr height Max:0.25mm;
Power supply

AC380V,3PH,50HZ



Mechanical length 5420*1480*1380mm(as per final drawing)

Motor list

Drive:18.5KW PHASE servo motor
feed: 3.3KW PHASE servo motor
saw: 22KW PHASE servo motor
Linear guide Hiwin Chinese Taiwan
Clamp block model tape shape to avoid scratching the steel pipe
main shaft gearbox Special made
Cable protection Drag chain
Equipment document User’s manual & electrical diagram



Features

1. Smooth operation and high cutting precision
2. Noise reduction and safety
3. Superior cutting edge, no burr, cost saving
4. Low noise, no burr for cutting, safer operator, saving cost and material.
5. Automatic, intelligent and pollution-free operation
6. New function: remote control system to solve problems in time.





Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
