Welded Pipe CNC Cold Saw Cutting Machine PLC 22kw Electrical Diagram
Welded Pipe Line Fly Pipe Cutting Saw Fly Saw Cutting Machine
Introduction

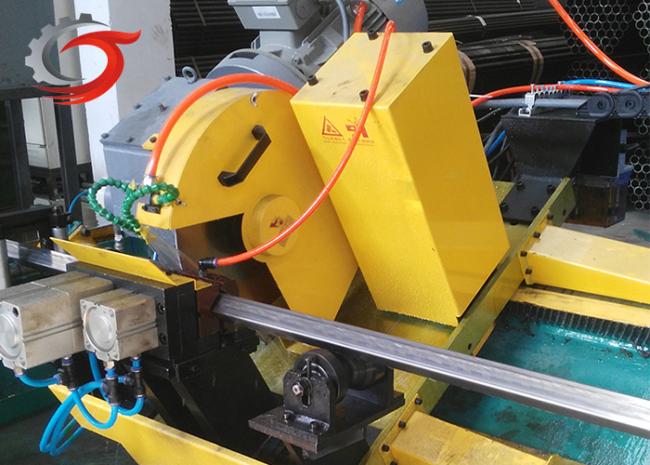

Cold saw cutting machine, safer to run, cleaner to cut, less prone to breakage. Cold saws can be operated with HSS or TCT blades. The mobile carriage is accelerated by a reliable rack and pinion system, driven by AC or DC. It runs quietly.
| Material | Q195 Q235 SPCC | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 5420*1380*1280mm(as per final drawing) | |
|
Motor list |
Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 22KW | Siemens AC motor | |
| main shaft gearbox | Special made | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. High cutting precision
2. Solid structure design, long service life
3. Ability to handle products of various shapes: round, square, rectangular, open profiles
Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
