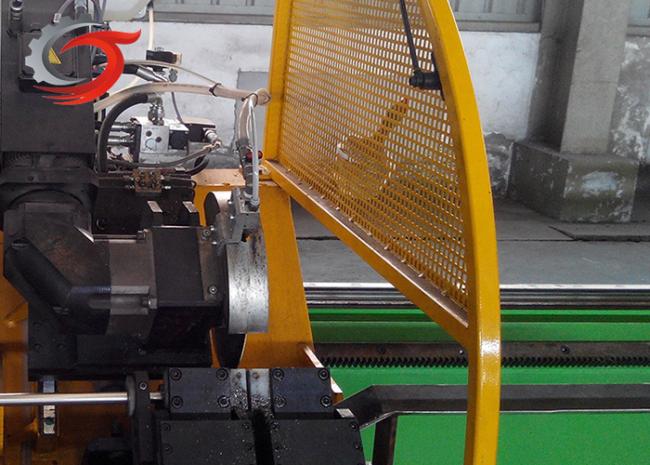

Servo 3.3kw Automatic Cold Saw Machine , 80mm Flying Cut Off Machine
Tube mill production line tube square fly cutting saw profile production machine tube mill factory price
Introduction
The cold cutting flying saw adopts professional motion control technology, with higher tracking and synchronization accuracy to ensure cutting accuracy. The servo feeding mechanism completes the cutting process, which not only meets the needs of the cutting process, but also increases the service life of the cutting blade.
| Material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX89mm | thick:0.5～4.0mm |
| Square tube:MAX65×65mm | thick:0.5～4.0mm | |
| Rectangular tube:MAX 50×80mm | thick:0.5～4.0mm | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Mechanical length | 5420*1380*1280mm(as per final drawing) | |
|
Motor list |
Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 22KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Oil supply system | Auto oil filling | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. High cutting precision
2. Solid structure design, long service life
3. Ability to handle products of various shapes: round, square, rectangular, open profiles
Our advantage
1. Advanced production testing equipment and strict quality control system ensure good and stable product quality.
2. Cost-effective and long-life saw blades help customers save more money.
3. The steel plate is chrome-plated, the blade is rust-proof, and the appearance is better.
4. Factory direct sales ensure more professional service and prompt delivery time.
