6m Automatic CNC Cutting Machine , 100m/Min Cold Saw Machine
Low carbon steel pipe cutting machine metal pipe automatic cold saw cutting machine flying saw machine
Introduction

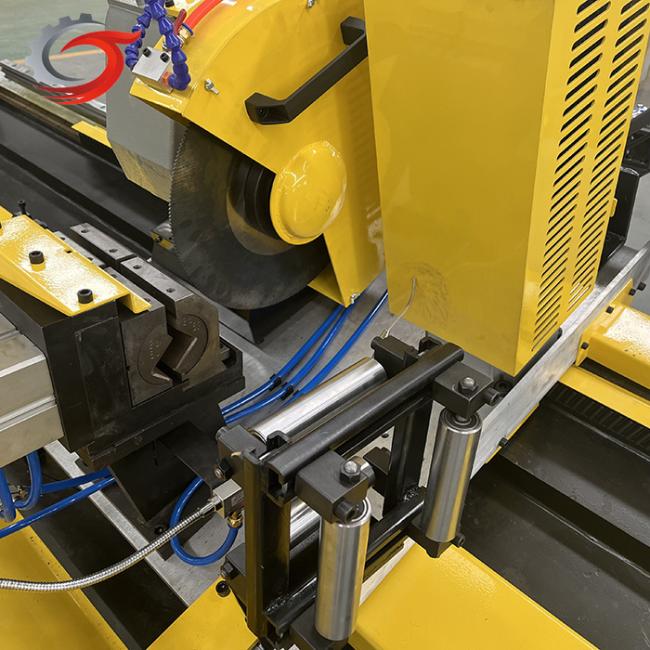

Flying saws are auxiliary equipment used in continuous production lines. Flying saw automatic fixed ruler to cut steel pipe. It is one of the first component support devices for welded pipe production. The flying saw uses a low-inertia DC motor to measure, calculate, and drive the saw car and the high-speed pipe through a mechanical transmission device, and then cut the pipe into a specified length.
| Material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX89mm | thick:0.5～4.0mm |
| Square tube:MAX65×65mm | thick:0.5～4.0mm | |
| Rectangular tube:MAX 50×80mm | thick:0.5～4.0mm | |
| Production speed | 100m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 4420*1280*1280mm(as per final drawing) | |
|
Motor list |
Drive:15KW | Yaskawa servo motor |
| feed: 2.9KW | Yaskawa servo motor | |
| saw: 15KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp | Pneumatic | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| Main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Ability to handle products of various shapes: round, square, rectangular, open profiles
2. High cutting precision
3. Remote monitoring function, which can remotely evaluate the on-site operation status
4. After programming, there is no need for the operator to always be at the console
Our advantage
1. Advanced production testing equipment and strict quality control system ensure good and stable product quality.
2. Cost-effective and long-life saw blades help customers save more money.
3. The steel plate is chrome-plated, the blade is rust-proof, and the appearance is better.
4. Factory direct sales ensure more professional service and prompt delivery time.
