Introduction

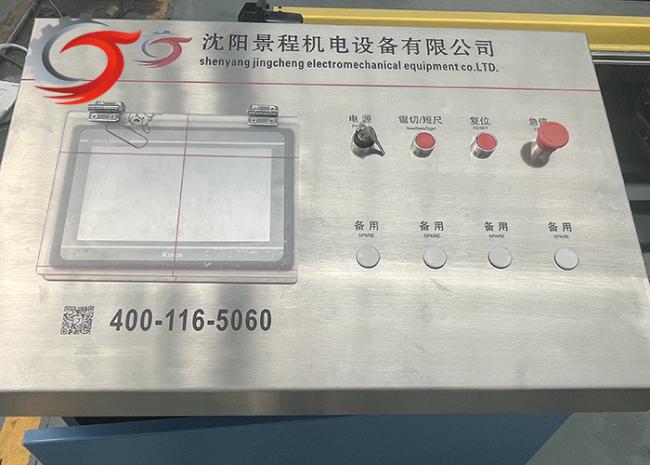

The cold cutting flying saw adopts professional motion control technology, with higher tracking and synchronization accuracy to ensure cutting accuracy. The servo feeding mechanism completes the cutting process, which not only meets the needs of the cutting process, but also increases the service life of the cutting blade. User-friendly man-machine interface, parameter adjustment is convenient and quick. Adopt cold chip method, low noise, high safety, smooth cutting end face, no burr.
| material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX63mm | thick:0.5～3.0mm |
| Square tube:MAX50×50mm | thick:0.5～3.0mm | |
| Rectangular tube:MAX 40×60mm | thick:0.5～3.0mm | |
| Production speed | 120m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Feeding direction | ||
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 4420*1280*1280mm(as per final drawing) | |
|
Motor list |
Drive:15KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 15KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Oil supply system | Auto oil filling | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. The cold saw blade rotates at low speed and has low noise;
2. When cutting, the saw blade is crushed without harm to people;
3. Remove the heavy cutting and deburring machine to save costs and improve production efficiency.
our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
