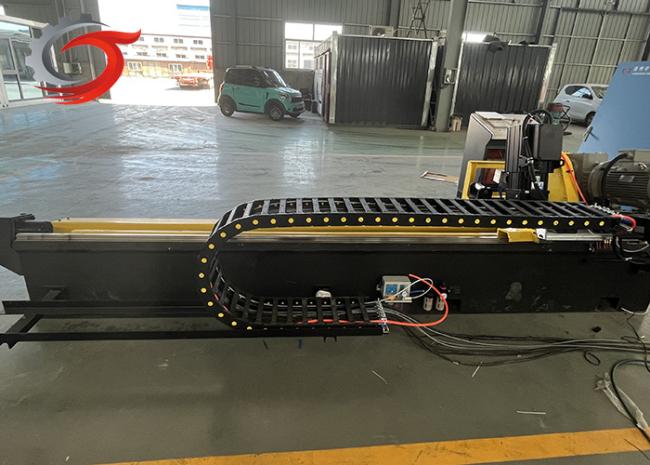

Horizontal 15kw Computer Flying Saw Pneumatic Automatic Machine
Horizontal Metal Cutting Saw Pipe CNC Cutting Circular Pipe Saw Steel ERW Pipe Welding Machine
Introduction
Cold saw cutting machines are designed to make clean and very precise in-line cuts without compromising effective production speed, and on this basis optimize cutting performance parameters.
| Mechanical length | 4420*1280*1280mm(as per final drawing) | |
|
Motor list |
Drive:15KW | Yaskawa servo motor |
| feed: 2.9KW | Yaskawa servo motor | |
| saw: 15KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp | Pneumatic | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. Automatic control (also manual control)
2. Smooth and flat tube ends
3. Length tolerance: ±0.5mm
4. Stable and reliable
5. Quiet, higher safety
6. Large LCD touch screen.
7. High-speed and high-precision cutting.
8. Excellent cutting edge, no burr, save product cost
our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
