Welded Flying Cut Off Machine Carbon Steel 76mm CNC Cold Saw
Factory Price Steel Pipe and Tube Welded Pipe Line Round Pipe Cutting Saw Cold Saw
Introduction

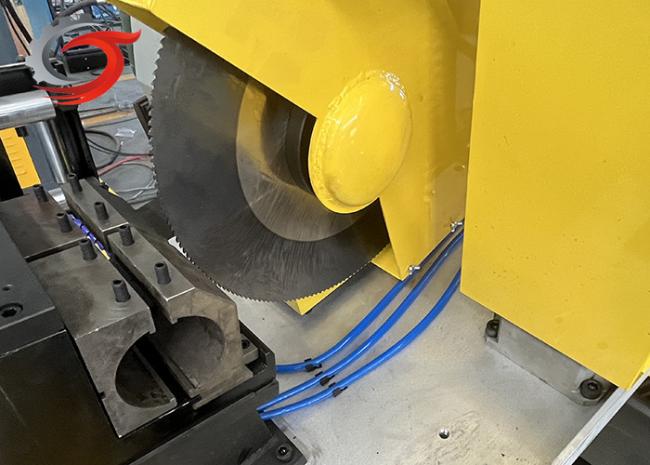

During metal sawing, the heat generated by the saw blade as it cuts the workpiece is transferred through the sawtooth to the sawdust, keeping the blade and workpiece cool. Cold cut saws are different from traditional friction saws. The friction between the workpiece and the friction saw blade results in high temperature of the friction saw and workpiece. The cold cutting saw has high section accuracy, no burrs inside and outside, smooth cutting surface, no need for post-processing such as flat head chamfering, reducing the processing strength of the next process, saving time and raw materials, and the workpiece will not be due to friction. Cutting efficiency, no spark, no noise, environmental protection and energy saving.
| material | Q195 Q235 SPCC | |
|
Cutting range |
Round tube:MAX76mm | thick:0.5～3.5mm |
| Square tube:MAX60×60mm | thick:0.5～3.5mm | |
| Rectangular tube:MAX 40×80mm | thick:0.5～3.5mm | |
| Production speed | 120m/min(length 6 meter,dia.≤25mm) | |
| Cutting length | 1500-99999mm | |
| Length tolerance | ±1.5mm(speed diviation not more than 2%)； | |
| Operation height | 750mm | |
| Cutting burr height | Max:0.25mm； | |
| Power supply | AC380V,3PH,50HZ | |
| Mechanical length | 5420*1380*1280mm(as per final drawing) | |
|
Motor list |
Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor | |
| saw: 18.5KW | Siemens AC motor | |
| Linear guide | Hiwin Chinese Taiwan | |
| Clamp | Pneumatic | |
| Clamp block model | tape shape to avoid scratching the steel pipe | |
| Oil supply system | Auto oil filling | |
| Saw blade | High speed steel | |
| main shaft gearbox | Special made | |
| Gear rack | KH from Chinese Taiwan | |
| Cable protection | Drag chain | |
| Carriage protection | Safety bumpers for carriage are equipped at both ends | |
| Equipment document | User’s manual & electrical diagram | |
Features
1. It can improve the quality of sawing workpiece;
2. The high-speed and soft curve reduces the impact of the machine and improves the service life of the equipment;
3. Improve sawing speed and productivity efficiency;
4. Remote operation and intelligent management system;
5. Safe and reliable.
Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
