GYTS 72 Core SM G652D With PE Jacket Steel Wire Armored Communication Fiber Optic Cable
GYTS 72 Core SM G652D With PE Jacket Steel Wire Armored Communication Fiber Optic Cable
Description of GYTS fiber optic cable

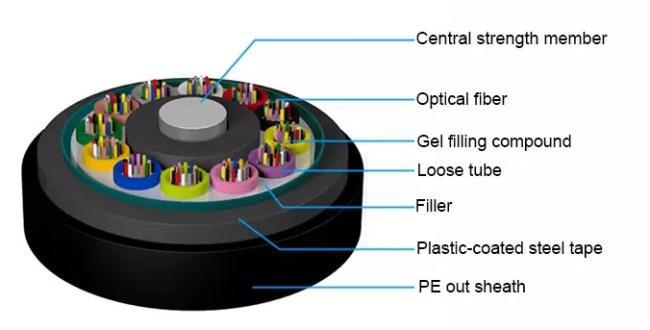

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, witch is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Specification of GYTS fiber optic cable
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation (+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+ fillers) |
Allowable Tensile Load(N) |
Allowable Crush Resistance(N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19.0 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Feature of GYTS fiber optic cable
1. Steel jacket offers high tension and crush resistance
2. With steel central strength member
3. PE jacket itself prevents UV, and UV material can be added to perform much better
4. It's available under high and low temperatures and anti-ading
The reason why Choose us:
1. On time delivery
2. Customization
3. Factory outlet
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Quality guarantee
7. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables, indoor fiber optic cables, FTTH Drop cables, ADSS,
Indoor armored patch cords, fiber cable Optical patch cords, Sc LC FC ST MTP MPO optical patch cord .
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable.
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers.
