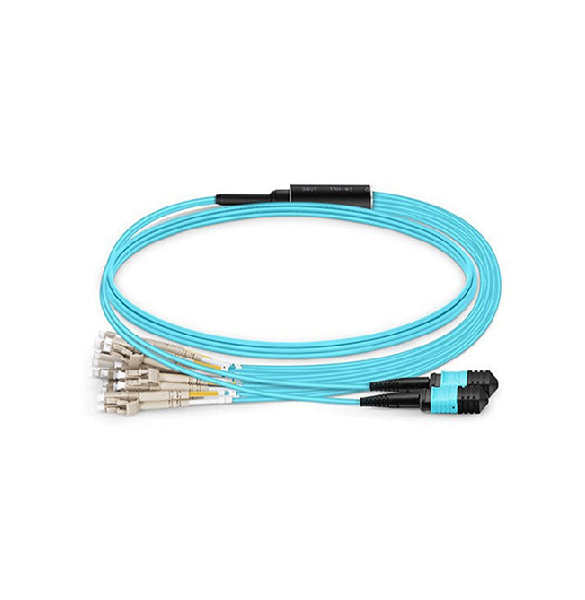

Blue Mpo Fiber Patch Cord Om3 2.0mm 3.0mm Breakout Lc Connector Cable Assembly
MPO Fiber Patchcord Connector MPO Fiber Optic Patch Cord Breakout Cable Assembly
Description of MPO MTP Patch Cord
MTP/MPO connectors are terminated at the ends of the fiber cable is called MTP/MPO fiber optic patch cord. Due to the compact design of the MTP/MPO connector, the MTP/MPO patch cord has multi cores and small size. MTP/MPO jumpers are available in a variety of high-density cabling systems, fiber-optic communication systems, cable television networks, telecommunications network LANs, wide area networks, and FTTx.
Specifications of MPO MTP Patch Cord
| Characteristic | SM,MM | |||
| Connector type | ST-ST/FC/SC/LC/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Operation temperature(°C) |
-40~+85 |
|||
| item | value |
| Model Number | FTTH MPO Fiber Optical Patch Cord |
| Type | Indoor Fiber Optic Cable |
| Place of Origin | China |
| Lengh | 1m 2m 3m 5m 8m 10m 12m 15m 20m 30m 40m 50m |
| Colour | orange blue purple |
| Mode | multimode singlemode |
| fiber | OM3 OM4 |
| GJacket | LSZH |
| Connector | MPO/LC/MTP |
| Packing | OEM |
Specifications of MPO MTP Patch Cord
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) 19-inch standard size, light in weight and robust structure
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operatio
Application of MPO MTP Patch Cord
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN
4) CATV
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Quality guarantee
1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.
Store the drum indoor before using, the drum should place sideways not on the end.
3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
We have several production promotion activities every month, welcome to inquire.
