TPU Round Drop Cable Micro 3.0mm ADSS OS1 OS2 OM1
TPU Round Drop Cable Micro 3.0mm ADSS OS1 OS2 OM1
Description of GJFJU optical fiber cable

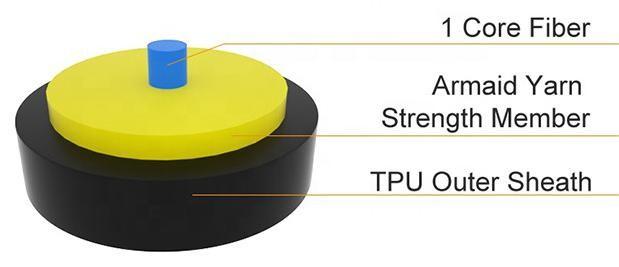

Micro ADSS Optical Drop cable consists of individually colour coated 250um fibers, reinforced with aramid yarns as strength member and covered with UV and Flame resistant LSZH jacket or a thermoplastic urethane out sheath which enable cable with excellent abrasions resistance and to be applied to extreme cold temperature
Specification of GJFJU optical fiber cable
| Country of Origin | China |
| Brand name | CFOFC or OEM |
| Product name | TPU jacket round drop cable |
| Cable type | GJFJU-1B6 |
| Fiber count | 1 |
| Fiber type | Tight buffer fiber |
| Fiber model | G652D G657 OM1 OM2 OM3 OM4 |
| Strength element | Aramid yarn |
| Outer jacket material | TPU / LSZH |
| Outer diameter | 3.0mm |
| Weight | 37kg/km |
| Operation temperature | -30~+70℃ |
| Tensile strength long/short term | 1000/400 N |
| Crush resistance long/short term | 2200/1000 N/100mm |
| Bending radius dynamic/static | 20/10 D (D= cable diameter) |
Feature of GJFJU optical fiber cable
1. Good mechanical and environmental characteristics.
2. Excellent abrasion resistance and cold temperature workability.
3. Solf, flexible, easy to lay and splice, and with big capacity transmission.
Application of GJFJU optical fiber cable
1. Long-distance telecom, LAN in high-voltage area or access to telecom network
2. Especially for power transmission system. excessive thunder areas and high electromagnetic interference.
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
