Outdoor Fiber Optic Terminal Box 24 48 Core FTTH Fiber Optic Distribution Box
FTTH Outdoor Splitter Fiber Optical Distribution Box 24/48 Core
Description OF Splitter Fiber Optical Distribution Box
Plastic GFL/S splitter distribution box is used for the distribution connection of cable and fiber optic communication devices. It leads out the optic signal from drop cable to pigtails by splicing in the box(also for surplus cables and adapters).It can be used for protective connection of cable and lay out pigtails,and fiber optic terminations of optical acess network.It’s applicable for wall or pole mounted outside the building when cables already come to building in the FTTH project.It also finishes straight through connection,Cable shall be spliced with indoor cable after stripping and coiling in the box,which finishes straight through connection,complying to traditional network transportation requirement. Th esplitter distribution box

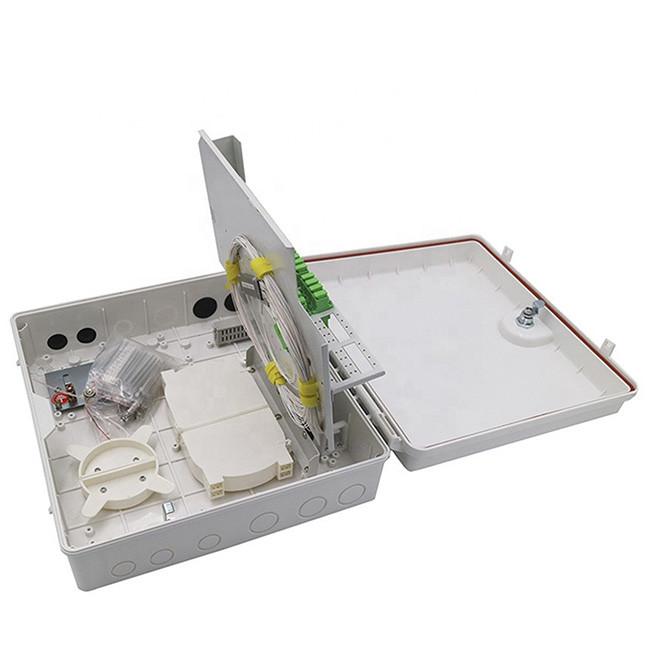

canrealize the functions of splitting,splicing,distribution and butterfly-like cable dispatch after cable to the floor in FTTH project.The bottom part is for incoming cable fixing,storage,splicing,and parking.The upper layer is for standard slot position for the installation of insert-style splitter. Cable strapping for splitter are optional.
Specification OF Splitter Fiber Optical Distribution Box
|
Type |
Size (H×W×D)mm |
cable ports |
Max capacity |
|
GFX/S-24D |
340×350×120 |
12 |
24cores |
|
GFX/S-48D |
340×350×120 |
12 |
48cores |
|
GFX/S-16D |
340×350×120 |
12 |
1:16(1pcs) 1:8(2pcs) |
|
GFX/S-32D |
340×350×120 |
12 |
1:8(4pcs) 1:16(2pcs) 1:32(1pcs) |
|
GFX/S-HS72D |
340×350×120 |
12 |
1:32(2pcs)/72cores |
Features OF Splitter Fiber Optical Distribution Box
Can accommodate1x4&1x8&1x16 1x32PLC splitter.
For distribution,24/48/72ports of adapters panel
Maximum 2pcs of splice trays(expandable)for satisfying kinds of connection.
Industry standard user interface,be made of high impact plastic.
Anti-UV,Ultra violet resistant and rainfall resistant.
Wall and pole mountable.
Application OF Splitter Fiber Optical Distribution Box
Widely used in FTTH access network.
Telecommunication networks.
CATV Networks.
Data communications networks.
Local Area Networks.
