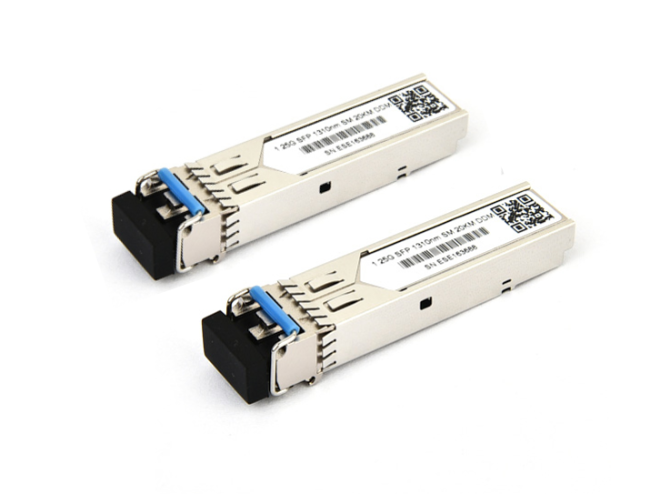

LC Connector Optical Fiber Transceiver Module 1.25G 1310nm SM 20KM SFP
1.25G 1310nm SM 20KM SFP LC Connector Optical Fiber Transceiver Module Dual-fiber SFP
Description of Optical Module
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20KM transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Specification of Optical Module
| Item | Value |
| Type | SFP Module |
| Place of Origin | Guangdong China |
| Brand Name | CFOFC |
| Use | FTTH FTTB FTTX Network |
| Warranty Time | year,lifetime maintenance,shipping costs at your own expense |
| Network | None |
| Product name | 1.25G 1310nm 20KM LC Dual-fiber SFP |
| Wavelength | 1310nm |
| Distance | 20KM |
| Rate | 1.25G |
| Fiber type | SM |
| Connector | LC |
| Color | Silver |
| Material | Metal |
| Certification | RoHS,REACH,ISO9001 |
| OEM or ODM | Accepted |
Features of Optical Module
Data-rate of 1.25Gbps operation
1310nm FP laser and PIN photodetector for 20KM transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Industrial : -40 to +85
Application of Optical Module
FTTH
FTTB
FTTX
Network
The reason why Choose us
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.
4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
