GYFJH type cable 7.0mm Tight-buffered Fiber 2 Core Outdoor fiber Optical Cable
GYFJH type cable 7.0mm Tight-buffered Fiber 2 Core Outdoor fiber Optical Cable

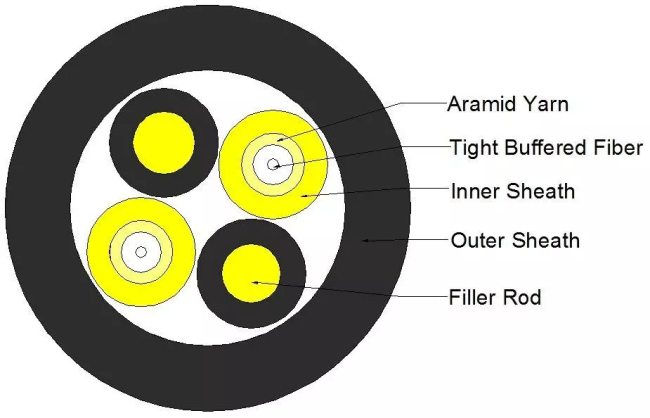

Specification of GYFJH fiber optic cable
|
Specification
|
Single Mode | Multi Mode | |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | |
| Fiber Type | G652D,G655, G657A1, G657A2, G657B3 | OM1/OM2/OM3/OM4/OM5 | |
| Fiber Brand | YOFC, Corning | ||
| Cable Type | 2 Cores, 4 Cores | ||
| Sheath Material | PVC, LSZH, OFNR, OFNP, TPU | ||

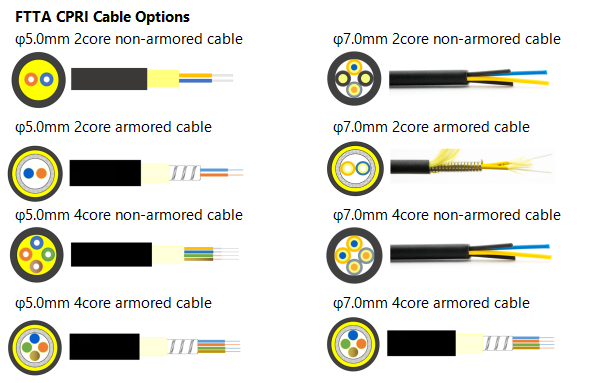

| Cable Size | 5.0mm, 7.0mm, or Specify | ||
| Sheath Color | Black | ||
| Length (M) | Minimum 2KM | ||
| Operating Temperature | -10℃~+60℃ | ||
| Storage Temperature | -40℃~+80℃ | ||
| Compliant Standards | CE,RoHS, REACH and IEC |
||
|
No. |
Items |
Unit |
Specification |
||
|
G.657A1 |
|||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
9.0±0.4 |
|
|
1550nm |
μm |
10.1±0.5 |
|||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
||
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
||
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
||
|
5 |
Coating Diameter |
μm |
245±5 |
||
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
||
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
||
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
||
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.4 |
|
|
1550nm |
dB/km |
≤0.3 |
|||
|
10 |
Macro-Bending Loss |
1turn×10mm radius @1550nm |
dB |
≤0.75 |
|
|
1turn×10mm radius @1625nm |
dB |
≤1.5 |
|||
Feature of GYFJH fiber optic cable
1. flexible
2. water blocked
3. UV resistant
4. easy to lay and splice
5. with big capacity data transmission;
Application of armored optical fiber cable
1. Widely used in FTTA
2. Base station and outdoor environment
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields
6. One-to-one after-sales service
FAQ
1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.
2. Can you offer free samples?
Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.
3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.
4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
