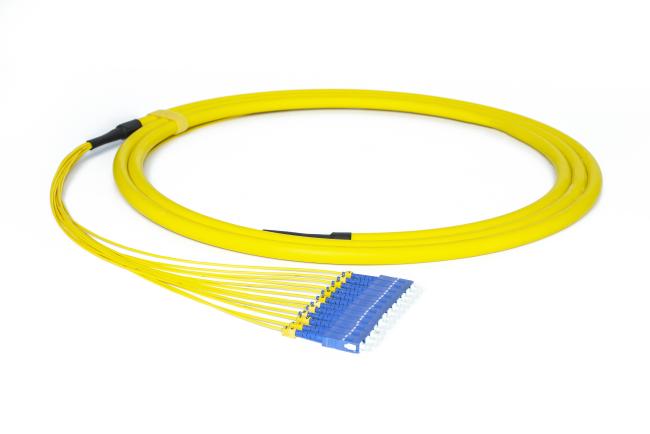

12cores SC UPC To SC UPC Fiber Optic Pre Terminated patch cord Single Mode G657A1
2. Both single mode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC end.
| Specification | Single Mode | Multi Mode | ||
| Parameter | PC | UPC | APC | UPC |
| Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Insertion Loss | ≤0.3dB | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥40dB | ≥50dB | ≥60dB | ≥30dB |
| Fiber Type | G652D,G655, G657A1, G657A2, G657B3 | OM1/OM2/OM3/OM4/OM5 | ||
| Fiber Brand | YOFC, Corninng | |||
| Exchange | ≤0.2dB | |||
| Repeartability | ≤0.2dB | |||
| Durability | > 1000 times | |||
| Connectors Type | SC, LC, FC, ST, E2000, MU, MTRJ, MPO, DIN, SMA, VF-45, LX.5 | |||
| Fiber Count | 4, 6, 8, 10, 12, 24, 36, 48, 72, 96, 144 Cores | |||
| Sheath Material | PVC, LSZH, OFNR, OFNP | |||
| Cable Diameter | φ3.0mm, φ2.0mm, φ0.9mm or Specify | |||
| Length (M) | Customized | |||
| Operating Temperature | -40℃~+60℃ | |||
| Storage Temperature | -45℃~+85℃ | |||
| Compliant Standards | CE,RoHS, REACH and IEC | |||
Applications Of Fiber Patch Cord
- Telecommunications
- CATV, LAN, MAN, WAN, Test equipment
- Military industry
- Medical
- Data transmission
Features Of Fiber Patch Cord
- Low insertion loss and High return reflection loss
- Ferrule end surface pre-domed
- Excellent mechanical endurance
- Good repeatability and Exchangeability
- Compliant with IEC, RoHS, REACH Standards
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
