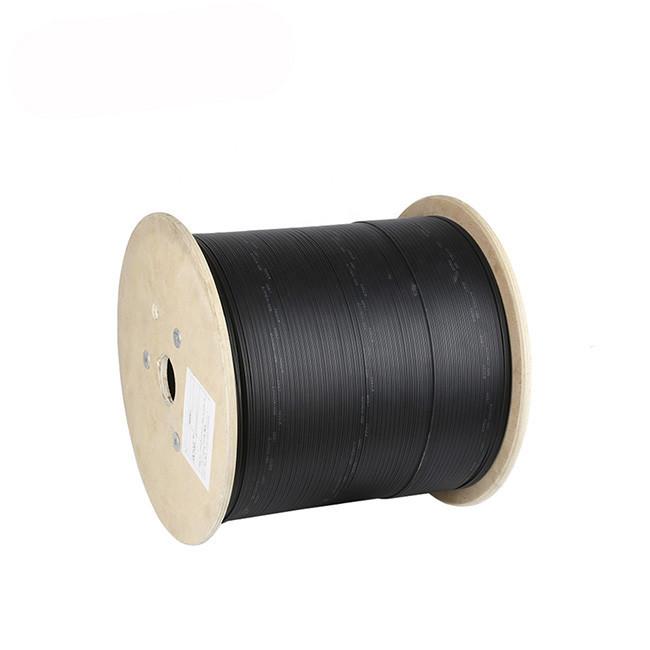

FTTH 2 Core Outdoor Self-Supporting Steel Wire Drop Ftth Fiber Optic Cable
Description of 2 core ftth cable

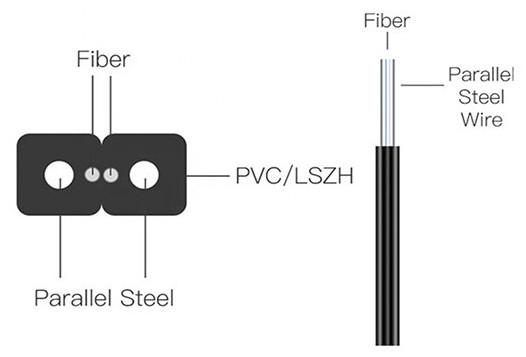

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
Specification of 2 core ftth cable
| No.of fiber | 1F-4F | |||||
| Gross weight | 8.5kg/km | |||||
SM fiber |
Fiber type | 9/125 | MFD | 8.6～9.8um | ||
| Cladding diameter | 125±0.7um | Cladding non-circularity | ≤0.7% | |||
| Coating diameter |
245±5um | Fiber color | standard spectrum | |||
| Strength member | Material | FRP / Steel wire | Color | white | ||
| Diameter | 0.5mm | Qty | 2 | |||
| Out sheath | Material | LSZH | Color | White / Black | ||
| Diameter | 2.0 (±0.1) *3.0mm (±0.1) | Thickness | ≧0.5mm | |||
|
No. of cable
|
2
|
|
|
Fiber Model
|
G.657A1
|
|
|
|
Material
|
Steel wire
|
|
Diameter(±0.03)mm
|
0.4
|
|
|
NO.
|
2
|
|
|
Messenger wire
|
Diameter(±0.05)mm
|
1
|
|
|
Material
|
LSZH
|
|
Color
|
Black
|
|
|
Cable size(±0.2)mm
|
2.0×5.0
|
|
|
Cable Weight(±2)kg/km
|
21
|
|
|
|
Short Term
|
600
|
|
Long Term
|
300
|
|
|
|
Short Term
|
2200
|
|
Long Term
|
1000
|
|
|
|
Without Tension
|
10×Cable-φ
|
|
Under Maximum Tension
|
20×Cable-φ
|
|
|
|
Installation
|
-20~+60
|
|
Transport&Storage
|
-40~+70
|
|
|
Operation
|
-40~+70
|
|
2. Laid to facilitate construction operations;part and the cable;
3. Jacket use low smoke, halogen-free flame-retardant materials;
4. Prevent lightning and strong electric environment;
5. FRP strengthen the component materials.
2. As pigtail of communication equipment;
3. Suitable for communication equipment;
4. Can be installed conveniently.
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
