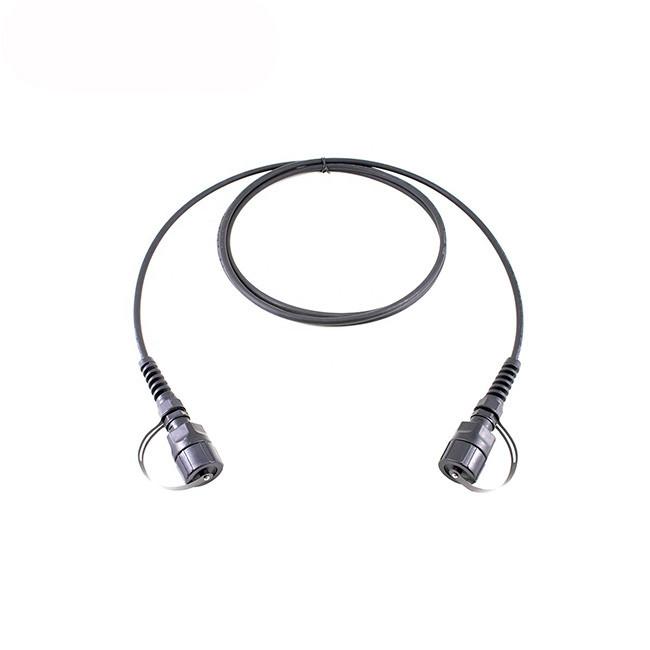

FTTA ODVA IP67 Connector Waterproof MPO LC SC Fiber Optic Patch Cord

Price Negotiable
Price: Negotiable
MOQ: 10Pcs
Delivery Time: 5-8 work days
Brand: CFOFC
Product Description

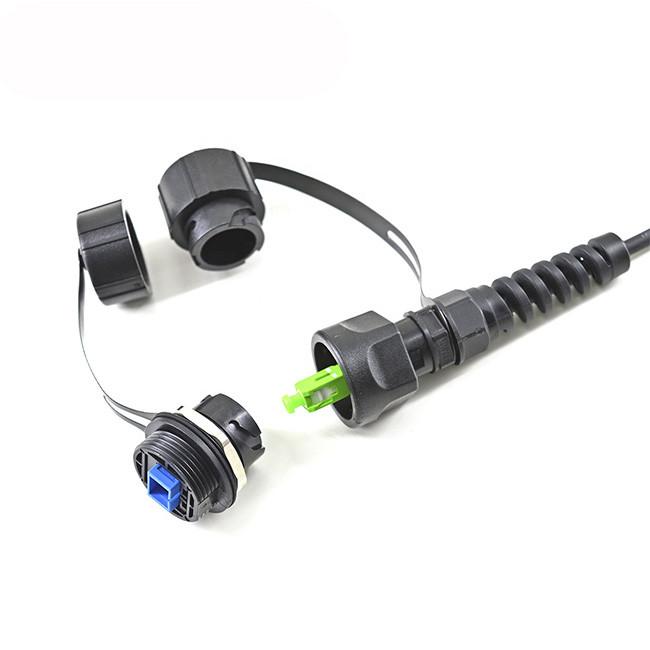

ODVA Fiber Optical Patch Cable LC / SC / MPO IP67 Waterproof Jacket


Description OF ODVA Fiber Optical Patch


ODVA-compliant connectors specifically for harsh environment applications, such as WiMax, Long Term Evolution (LTE), and Remote Radio Heads using Fiber To The Antenna (FTTA) connectivity, which require rugged connector and cable assemblies suitable for outdoor use. Designated the LC Series, UNIFIBER offers the broadest ODVA-compliant fiber-optic connector portfolio in the industry, providing both full-metal and plastic versions of the IP67-rated interconnects.



Specification OF ODVA Fiber Optical Patch


Fiber Count
1,2,12 core
Fiber Type SM G652D, SM G657A, or MM 50/125 or MM 62.5/125
Connectors ODVA SC/LC/MPO
Cable Diameter 4.8/7.0
Cable Jacket LSZH,TPU,PE
Cable Length 1~150m or Customized



Performance Level Standard Elite
Connector Mode Endface IL(max) (dB) RL(min) (dB) IL(max) (dB) RL(min) (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
24F/APC ≤0.75 ≥60 ≤0.35 ≥60
48F/APC ≤0.75 ≥60
MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
24F/PC ≤0.50 ≥20 ≤0.35 ≥20
48F/PC ≤0.50 ≥20
LC/SC/FC/ST SM APC ≤0.30 ≥60 ≤0.10 ≥60
UPC ≤0.20 ≥50 ≤0.10 ≥50
MM PC ≤0.20 ≥30 ≤0.10 ≥30


Features OF ODVA Fiber Optical Patch

Bayonet mechanical latch with IP67 grade
Suitable for different temperature and weather, harsh environment usage
Duplex LC, simplex SC or MPO connector with good repeat ability and interchangeability


Application OF ODVA Fiber Optical Patch

Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
Remote interface application such as FTTx or towers
Mobile routers and internet hardware
Harsh environments where chemical, corrosive gases and liquids are common
Used for based station, RRU, RRH, LTE, BBU
