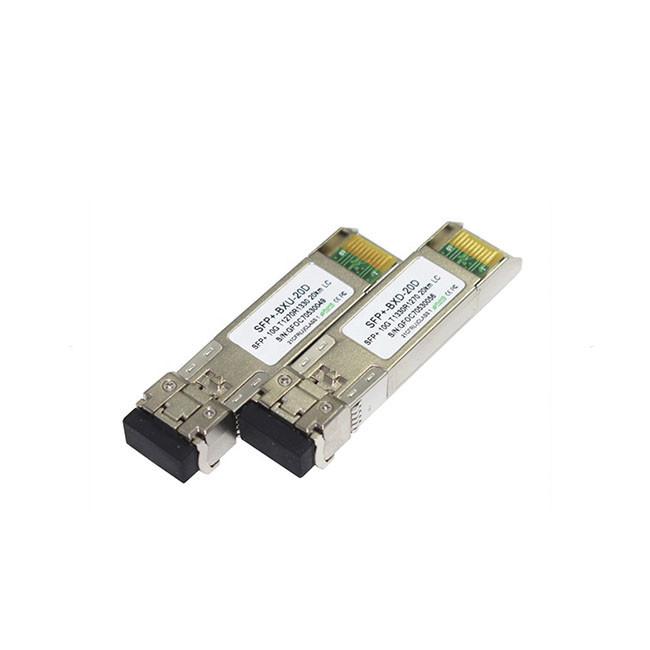

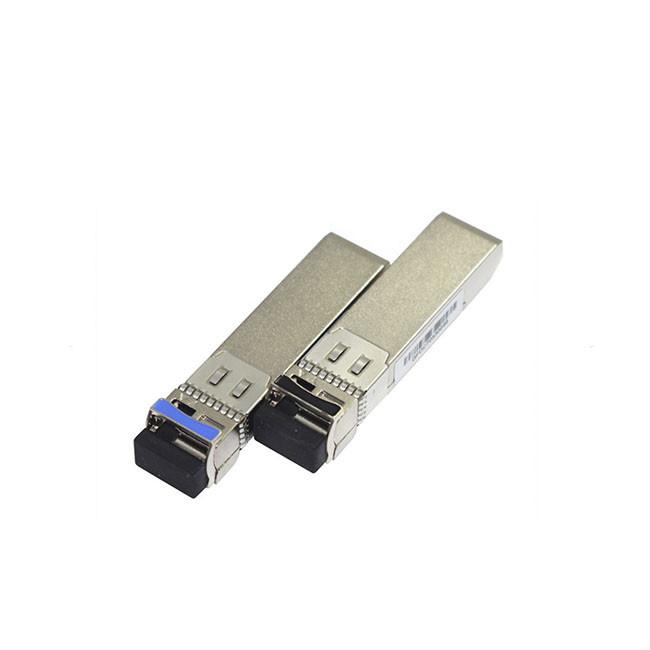

20km 10G SFP Module Single Mode Bidi Tx1310nm Rx1270nm LC
Price:
Negotiable
MOQ:
10Pcs
Delivery Time:
5-8 work days
Brand:
CFOFC
Product Description
Fiber Optical Transceiver SFP+ 10G SingleMode SFP Bidi 20km Tx1310nm / Rx1270nm LC
Description of Optical Module
SFP-10GB-BIDI-20KM-TX1270RX1330nm transceivers are designed for use in 10-Gigabit Ethernet links up to 20km over a single-strand Single Mode fiber.This capability doubles the capacity of installed legacy single mode fiber links.They are compliant with SFF-8431 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Specification of Optical Module
| Data Rate | distance | wavelength | LD | PD | Connector | DDM |
| 1.25G | 20km | T1310/R1550 | FP | PIN | LC/SC | Y/N |
| 1.25G | 120km | T1490/R1550 | DFB | APD | LC | Y |
| 1.25G | 20km | T1550/R1310 | DFB | FP | LC/SC | Y/N |
| 2.5G | 80km | T1550/R1490 | DFB | APD | LC | Y |
| 2.5G | 20km | T1310/R1550 | DFB | FP | LC/SC | Y/N |
| 2.5G | 20km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 2.5G | 40km | T1490/R1550 | DFB | PIN | LC/SC | Y/N |
| 2.5G | 40km | T1550/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 155M | 20km | T1310/R1550 | FP | PIN | LC/SC | Y/N |
| 155M | 20km | T1550/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 20km | T1490/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1310/R1550 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 20km | T1310/R1490 | FP | PIN | LC/SC | Y/N |
| 2.5G | 80km | T1490/R1550 | DFB | APD | LC | Y |
| 155M | 20km | T1310/R1490 | FP | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1550/R1310 | DFB | APD | LC | Y/N |
| 155M | 60km | T1550/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 40km | T1310/R1490 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1490/R1550 | DFB | PIN | LC | Y/N |
| 155M | 40km | T1490/R1310 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 120km | T1550/R1490 | DFB | PIN | LC | Y |
| 155M | 120km | T1490/R1550 | DFB | PIN | LC/SC | Y/N |
| 1.25G | 80km | T1310/R1550 | DFB | APD | LC | Y/N |
| 1.25G | 80km | T1550/R1490 | DFB | APD | LC | Y/N |
Features of Optical Module
Data-rate of 1.25Gbps operation
1490/1550nm DFB laser and PIN photodetector for 80km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring
Internal Calibration or External
Application of Optical Module
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
The reason why Choose us
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
