500m 1km 2km OTDR Launch fiber Cable Box SC UPC to SC UPC fiber optic tool kit
OTDR Launch fiber Cable Box SC UPC to SC UPC fiber optic tool kit

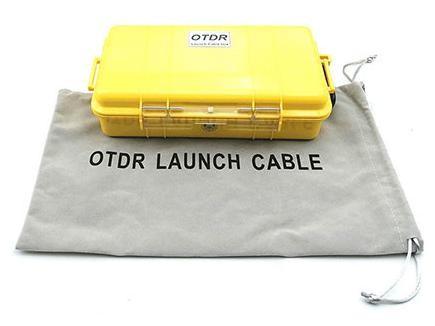

Description of OTDR Launch fiber Cable Box
An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a “launch box”, which is used to create the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.
| Length x Width x Height | 24 x 14 x 6.5cm |
| Material | SR Polypropylene |
| Weight | 0.75 kg (without fiber) |
| Fiber | Singlemode G652D or G657A1 |
| Connector | SC/LC/FC/ST or Specify |
| Fiber Length | 150m/500m/1km/2km or Specify |
| Operating temperature | -40° Cto +55° C |
| Typical Loss | < 0.5dB @ 1310nM for 1000 meters |
Feature of OTDR Launch fiber Cable Box
G652D or G657A fiber avaliable
SC/FC/LC/ST UPC or APC connector avaliable
Different fiber lengths of 150m/500/1km/2km...up to 10km
Readily carried with compact size and light weight
Built-in Cable ManagementHelps to reduce cable stress and save space.
Auto Purge ValveElaborate air vent valve regulates the pressure automatically.
st/apc), length (500m, 1km, 2km, or more)
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
