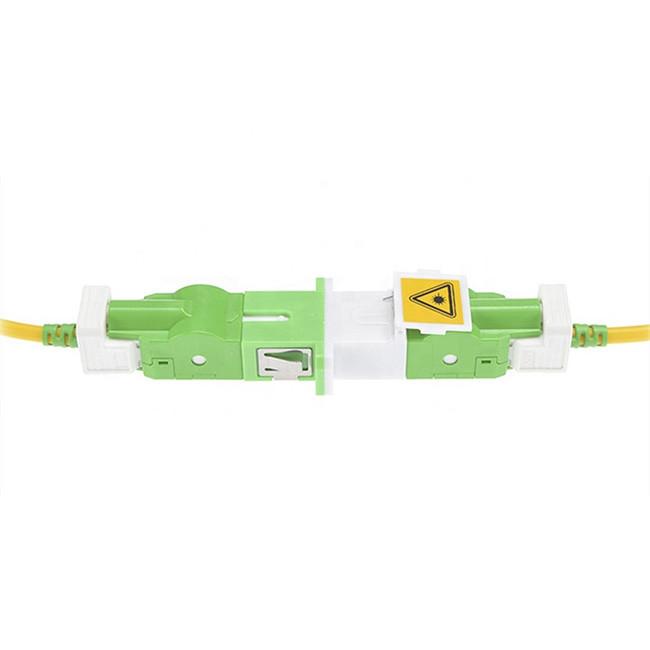

FTTH SC Fiber Optic Patch Cord Auto Shutter Connector For Dust And Laser Protection
| Connector | SC to SC | Jacket OD | 2.0mm |
| Fiber Mode | 9/125μm | Jacket Color | Yellow / White |
| Polish | APC to APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | LSZH / PVC / OFNP |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥60dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G.652D / G.657A1 / G.657A2 |
|
Item
|
SM(Single Mode)
|
MM(Multimode)
|
|||
|
Fiber Cable Type
|
G652/G655/G657
|
OM1
|
OM5/OM2/OM3/OM4
|
||
|
Fiber Diameter (um)
|
9/125
|
62.5/125
|
50/125
|
||
|
Cable OD (mm)
|
0.9/1.6/1.8/2.0/2.4/3.0
|
||||
|
Endface Type
|
PC
|
UPC
|
APC
|
UPC
|
UPC
|
|
Typical Insertion Loss (dB)
|
<0.2
|
<0.15
|
<0.2
|
<0.1
|
<0.1
|
|
Return Loss (dB)
|
>45
|
>50
|
>60
|
/
|
|
|
Insert-pull Test (dB)
|
<0.2
|
<0.3
|
<0.15
|
||
|
Interchangeability (dB)
|
<0.1
|
<0.15
|
<0.1
|
||
|
Anti-tensile Force (N)
|
>70
|
||||
|
Temperature Range (℃)
|
-40~+80
|
||||
- Offers highest level of dust and laser protection available Shutters open and close automatically Low insertion loss, high return loss
- Small, light, high dense connection
- Standard exact plastic material
- High credibility and stability
- Good in repeatability and exchangeability
- Flammability rating: UL 94V-0
- TIA/EIA, IEC and Telcordia GR 326-CORE compliance
- Meets with RoHS and REACH
- Data Centre
- Telecommunication networks
- CATV
- LAN and WAN
- FTTX
- Broadband network
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
