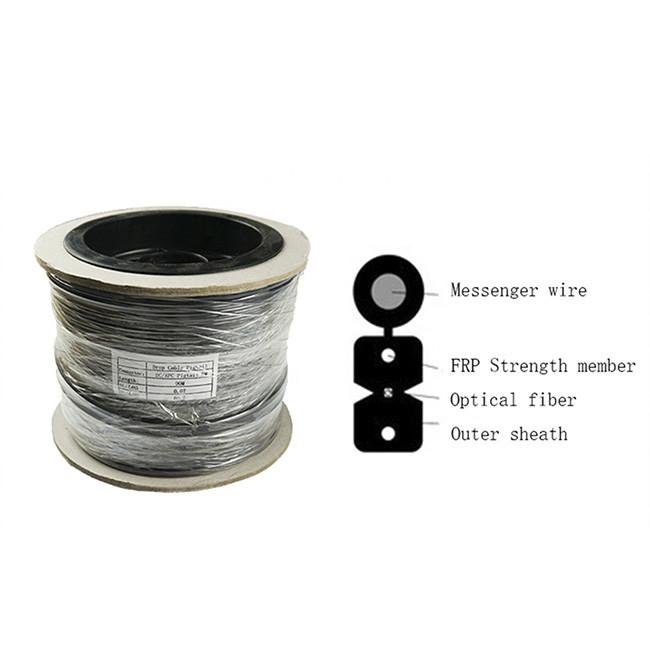

FTTH Outdoor Pre Connectorized Drop Cable Patch Cord SC / APC OS2 LSZH 150M
| Parameters | SC-SC | SCA-SCA |
| Working Temperature (°C) | -40 — +80 | |
| Insertion Loss (dB) | ≤0.2 | ≤0.2 |
| Return Loss( dB) | ≥45 | ≥60 |
| Tensile strength(N) | ≥55 | ≥55 |
| Durability(Times) | Exert a force of 1N for 1 hour at a distance of 0.5meter from the rear of connector. | |
|
Item
|
Unit
|
LC/SC/FC/ST Fiber Patch Cord
|
||||
|
SM
|
MM
|
|||||
|
Fiber Diameter
|
um
|
9/125
|
65.5/125
|
50/125
|
||
|
Polishing
|
|
PC
|
UPC
|
APC
|
PC
|
PC
|
|
Insertion Loss
|
dB
|
≤0.2
|
≤0.15
|
≤0.2
|
≤0.1
|
≤0.1
|
|
Return Loss
|
dB
|
≥45
|
≥50
|
≥60
|
-
|
-
|
|
Insert-pull Test
|
dB
|
≤0.2
|
≤0.2
|
≤0.3
|
≤0.15
|
≤0.15
|
|
Interchangeability
|
dB
|
≤0.1
|
≤0.1
|
≤0.15
|
≤0.1
|
≤0.1
|
|
Temperature Range
|
℃
|
-40~+80
|
||||
|
Durability(1/Matings)
|
≥500
|
|||||
|
Tensile Strength (N)
|
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
|
|||||
|
Fiber
|
9/125um, 50/125um,62.5/125um,ect
|
|||||
|
Diameter
|
0.9mm 2.0mm, 3.0mm etc
|
|||||
|
Cores
|
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc
|
|||||
- Good mechanical and enviromental characteristic
- Low insertion loss and high return loss.
- Soft ,flexiable ,easy to lay and splice, and with big capacity data transmission
- Anti-UV charateristics meet the requirements of relevant standards
- The mechanical charateristics meet the requirements of relevant standards
- Optical Fiber Communication System
- FTTH,LAN,PON & Optical CATV.
- Telecom Net
- Optical Fiber Test Equipment
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
6. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
