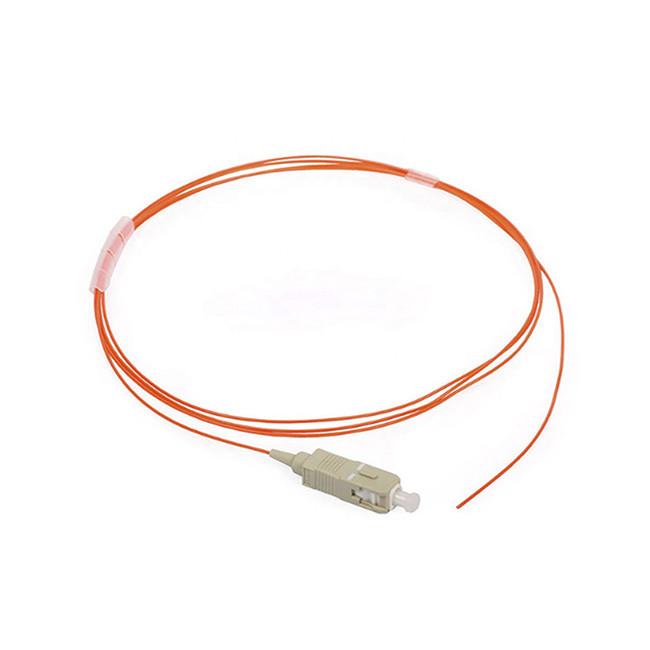

0.9mm Tight Buffer PVC LSZH OFNR SC PC APC SM MM Fiber Optic Pigtail
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
| Type | Single-mode/UPC | Single-mode/ | Multimode/PC |
| Insertion loss | ≤0.3 dB | ≤0.3 dB | ≤0.3 dB |
| Return loss | ≥50dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
| Operation temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Insertion time | 1000 | 1000 | 1000 |
- SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
- Superior qualified standard PC, APC, UPC, SPC polishing;
- φ0.9mm, φ2.0mm, φ3.0mm cable optional;
- Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
- Available in fiber bunch, ribbon fan-out, pigtail available;
- Simplex and duplex connector available;
- Low IL and High RL;
- Good exchange ability and good durability;
- Customized specifications are welcomed.
- Data Centre
- Telecommunication networks
- CATV
- LAN and WAN
- FTTX
- Broadband network
