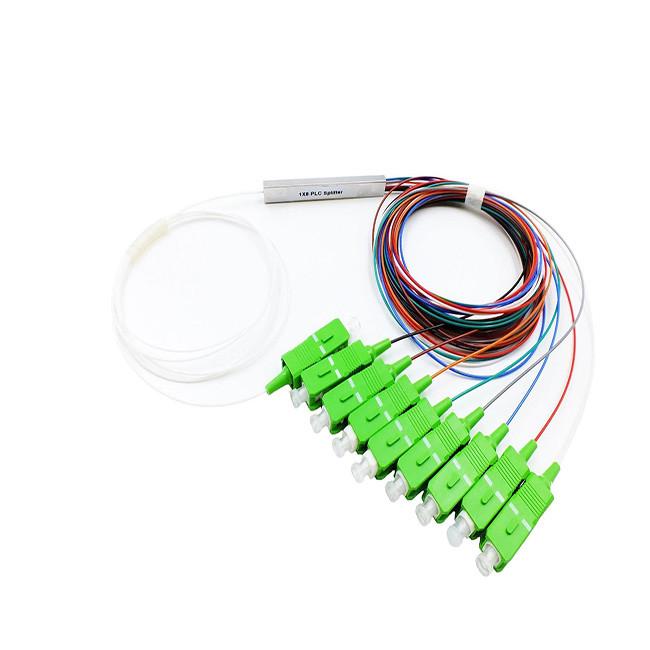

SC APC 900um 1x8 Fiber PLC Splitter Single Mode Mini Steel Tube
Description of Fiber PLC Splitter
| Parameters | |||||||
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformit(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss(dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
| Module Dimension(mm) | 100×80×10 | 120×80×18 | 141×115×18 | ||||
| Mini-Module Dimension(mm) | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
||
Features of Fiber PLC Splitter
- High reliability
- Compact size and various package
- Low Insertion loss and Low PDL
- Uniform power splitting
- Excellent environmental stability
Applications of Fiber PLC Splitter
- Access Network,EPON,GPON or WDM-PON
- Optical communication systems
- CATV system
- FTTX (FTTH, FTTB,FTTU and more) Network
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
