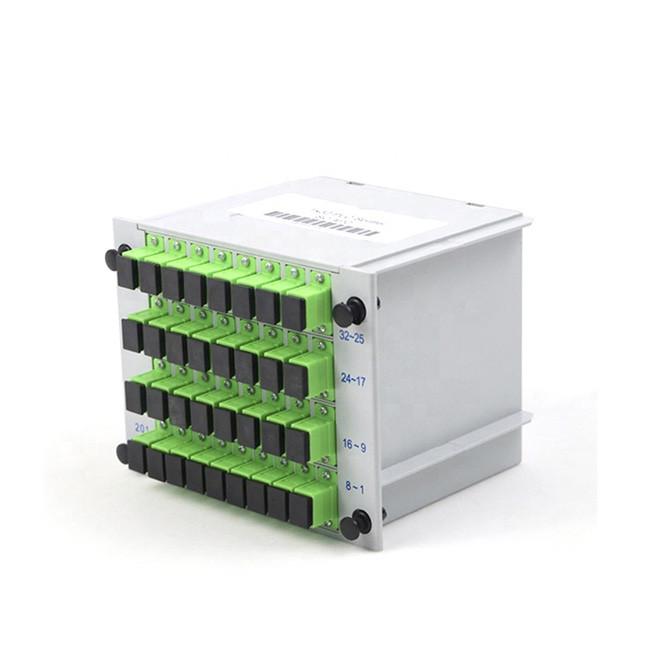

SC APC 1x32 PLC Splitter 32 Way LGX Box FTTH FTTB FTTX Network
| Parameters | |||||||
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Fiber Type | G657A1 or customer specified | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 |
| Loss Uniformit(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
| Return Loss(dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity(dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature(℃) | -40~+85 | ||||||
| Storage Temperature(℃) | -40~+85 | ||||||
| Device Dimension(mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A |
| Module Dimension(mm) | 100×80×10 | 120×80×18 | 141×115×18 | ||||
| Mini-Module Dimension(mm) | 50×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A | ||
Excellent Environmental Stability
Excellent Mechanical
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Stability Telcordia GR-1221 and GR-1209
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
