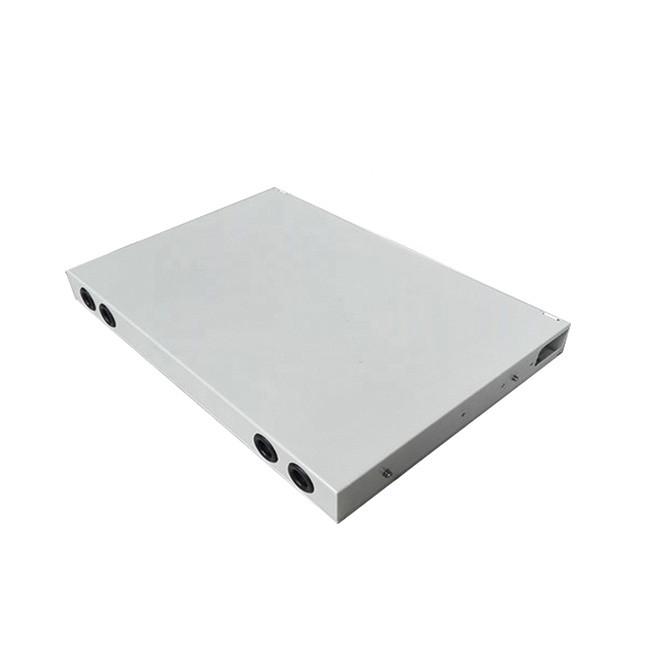

1U 19" Rack Mount 12/24/48 Port SC Sliding Fiber Optical Patch Panel
1U 19" Rack Mount 12/24/48 Port SC Sliding Fiber Optical Patch Panel
Description OF Fiber Optical patch Panel
GPZ/JJ-CLD series optical fiber terminal box can be applied in the branch connection of fiber termination,working as distribution box,19’’standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.
leaving 1.1～6m fiber and 20～40mm steel core.
* Fix the cable-pressing card and the cable, as well as the cable reinforce steel core.
* Lead the fiber into the melting and connecting tray, fix heat contract tube and melted tube to one of the connecting fiber.
After melting and connecting the fiber, move heat contract tube and melted tube and fix the stainless (or quartz) reinforce
core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one.Put the
protected joint into the fiber-laying tray.(one tray can lay 24 cores)
* Lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from
the bottom up. After all the fiber has been connected, cover the top layer and fix it.
* Position it and use the earth wire in accordance with the project plan.
Standard size, and reasonable structure
Slide out drawer for easy cable managementand operation.
Suitable for ribbon and single fiber
Compact design for space saving
Changeable adapter plate to fit different adapter interface
Front mark on the plate is easy for identification and operation
Front cover use Metal with transparent organic glass window in the middle for Good Visibility and observation.
Top cover is removeable,easy for operation.
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
The reason why Choose us:
1. Our shipping time is strictly controlled
2. We can provide customized service, according to the order requirements, can be equipped with a salesman and an engineer
3. Our company has rich export experience and is familiar with the customs policies of various countries
4. Large product inventory with massive production line
5. China's professional gas detection leader
FAQ
1. Are you factory direct?
as a professional fiber patch cord manufacturer, specialized in Fiber Optic Patch Cord,MPO, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
2. What is your main products?
Outdoor fiber optic cables indoor fiber optic cables FTTH Drop cables ADSS
Indoor armored patch cords fiber cable Optical patch cords Sc LC FC ST MTP MPO optical patch cord
3. Product quality guarantee period?
20 years Guarantee for fiber optic cable
4. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
