0.9mm 4 Channel Wdm Mux Demux 19 Inch Rack Mount Chasis 1550-1610nm

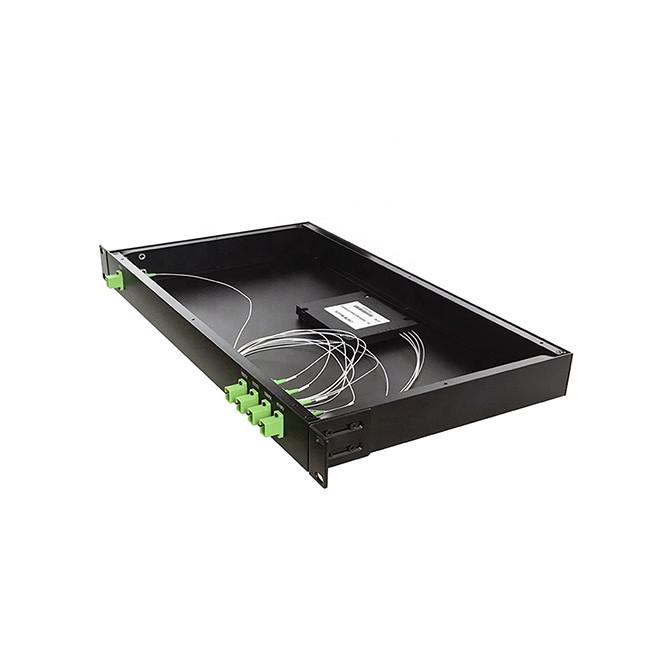

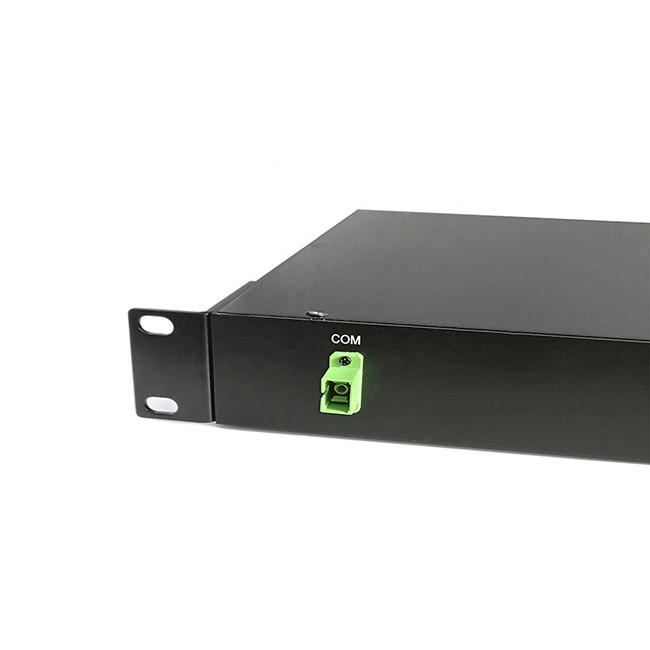

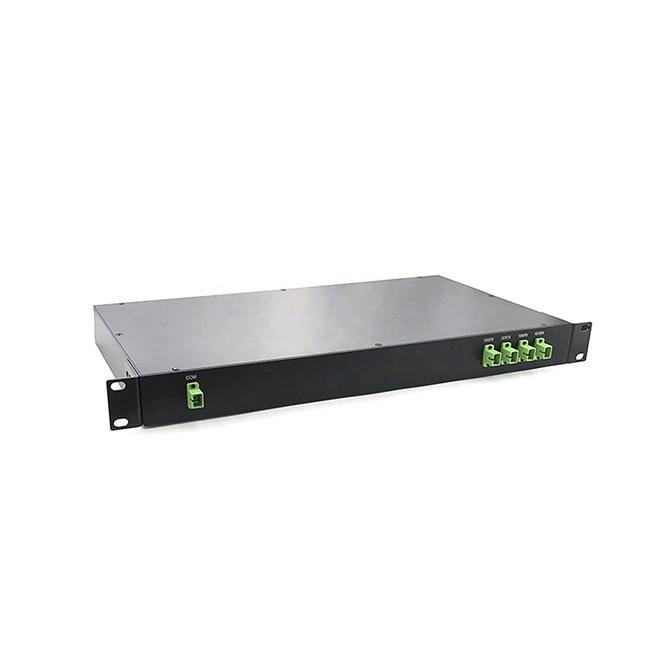

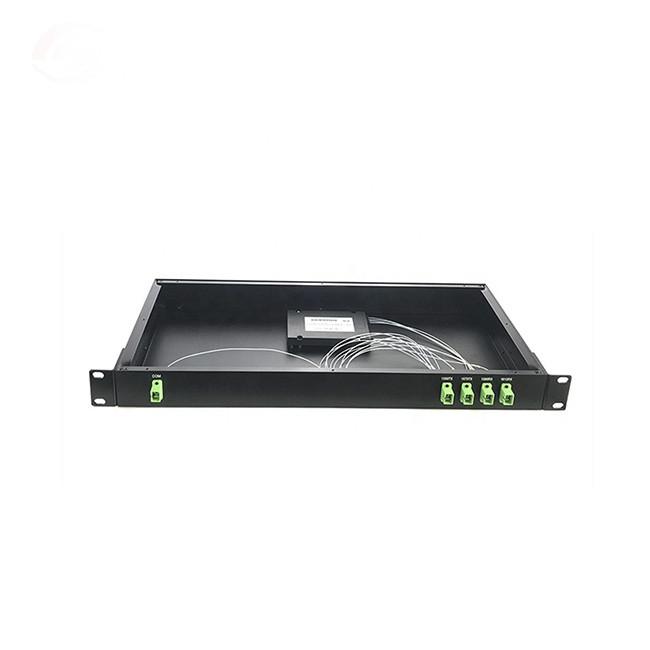

1550-1610nm 4CH CWDM Mux Demux Multiplexer Module In 19inch Rack Mount Chasis
Description of Multiplexer Module Rack Mount Chasis
Specification of Multiplexer Module Rack Mount Chasis
| Parameter | 4 Channel | 8 Channel | 16 Channel | 18 Channel | |||||
| Mux | Demux | Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | 1270~1610 or 1271~1611 | ||||||||
| Center wavelength Accuracy (nm) | ±0.5 | ||||||||
| Channel Spacing(nm) | 20 | ||||||||
| Channel Passband (@-0.5dB bandwidth (nm) | ±7.5/±6.5 | ||||||||
| Insertion Loss(dB) | ≤1.5 | ≤2.5 | ≤3.5 | ≤3.5 | |||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ≤1.5 | |||||
| Channel Ripple(dB) | ＜0.3 | ||||||||
| Isolation(dB) | Adjacent | ＞30 | |||||||
| Non-adjacent | ＞40 | ||||||||
| Isolation(dB) | Express with filter | ＞30 | |||||||
| Express without filter | ＞12 | ||||||||
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||||||
| Directivity(dB) | ＞50 | ||||||||
| Return Loss(dB) | ＞45 | ||||||||
| Maximum Power Handling (mW) | 300 | ||||||||
| Opterating Temperature(℃) | -40~+85 | ||||||||
| Storage Temperature (℃) | -40~+85 | ||||||||
| Package dimension (mm) (Glass tube) | 5.5*25 | ||||||||
| Package dimension (mm) (Steel tube) | 5.5*34 | ||||||||
| Package dimension (mm) (ABS box) | A: L100×W80×H10 | ||||||||
| B: L120×W80×H18 | |||||||||
| C: L140×W115×H18 | |||||||||
Features of Multiplexer Module Rack Mount Chasis
From 1260nm to 1620nm
Wide Operating Temperature
Good channel-to-channel uniformity
Wide Operating Wavelength:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Application of Multiplexer Module Rack Mount Chasis
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical Amplifier
Access Network
The reason why Choose us
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
