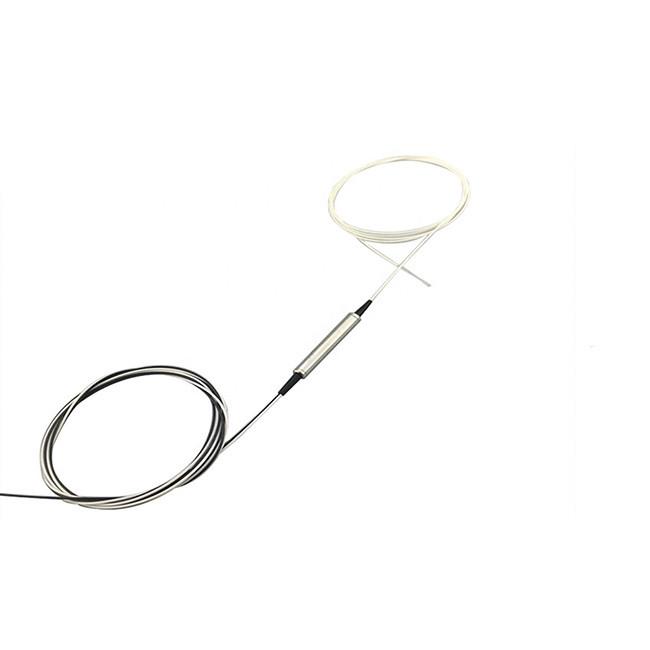

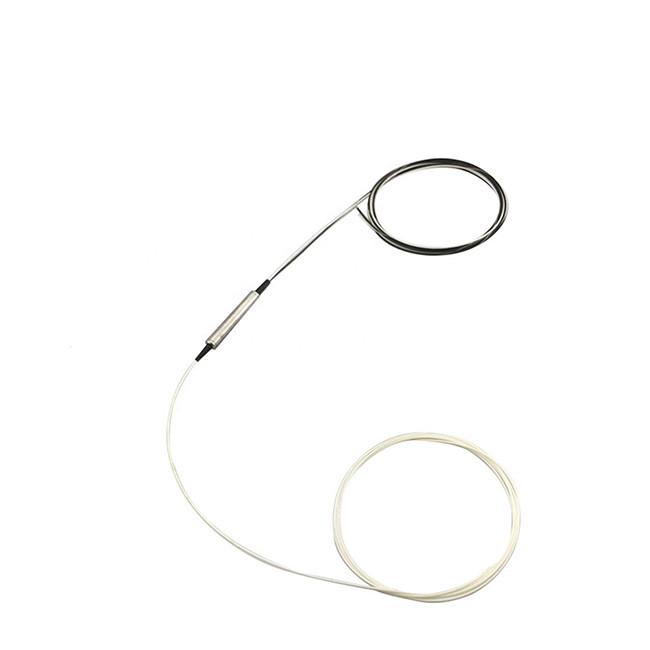

G652D CWDM Fiber Optic Patch Cord 1x2 PVC LSZH FTTH
Description of CWDM Fiber Optic Patch Cord
Specification of CWDM Fiber Optic Patch Cord
| Parameter | Unit | Value | |
| Pass Band | Wavelength Range | nm | 1530 - 1542 (1548 - 1560) |
| Max. Insertion Loss | dB | 0.6 | |
| Typ. Insertion Loss | dB | 0.4 | |
| Min. Isolation | dB | 22 | |
| Typ. Isolation | dB | 25 | |
| Reflection Band | Wavelength Range | nm | 1548 - 1560 (1530 - 1542) |
| Max. Insertion Loss | dB | 0.5 | |
| Typ. Insertion Loss | dB | 0.3 | |
| Min. Isolation | dB | 12 | |
| Typ. Isolation | dB | 14 | |
| Min. Return Loss | dB | 50 | |
| Max. Polarization Dependent Loss | dB | 0.10 | |
| Typ. Polarization Dependent Loss | dB | 0.05 | |
| Thermal Stability | dB/℃ | 0.005 | |
| Max. Optical Power (Continuous Wave) | mW | 300 | |
| Max. Tensile Load | N | 5 | |
| Fiber Type | SMF-28 fiber | ||
| Operating Temperature | ℃ | -5 to +70 | |
| Storage Temperature | ℃ | -40 to +85 | |
Features of CWDM Fiber Optic Patch Cord
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Application of CWDM Fiber Optic Patch Cord
WDM network
Telecommunication
Fiber optical amplifier
Access network
The reason why Choose us
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
