Direct Burial optical fiber closure IP68 12 To 288 Cores
Direct Burial optical fiber closure IP68 12 To 288 Cores
Description of optical fiber closure

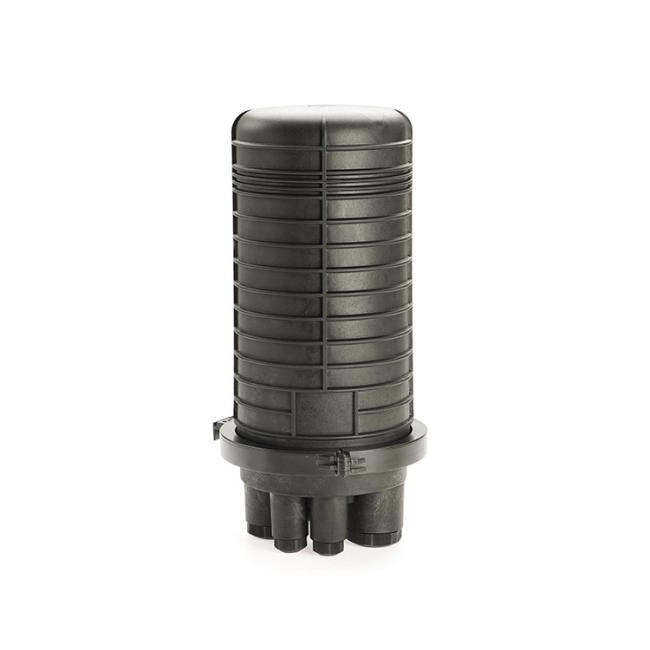

FCST012105 type of Fiber Optic Splice Closure is a member in dome series of optical fiber cable splice closures. This model has four small circular cable entry ports plus one big circular port for express (looped) cable. The sealing component is made from silicon. The cables and the closure are sealed in a mechanical way with the help of compacting pressure from the plastic screws (nuts) and the circular plastic hoop. This model is suitable for different methods of branch connection, including branching and splicing of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground applications. This model is excellent in sealing performance, easy for installation, wide applications and is prior choice of fiber connection equipment.
Specification of optical fiber closure
|
Construction
|
Description
|
|
Max. Capacity
|
Single:144Cores
Ribbon:432/576Cores |
|
Material
|
PP+GF
|
|
Dimension (mm)
|
460xФ225
|
|
Inlets/Outlets
|
1/4
|
|
Installation
|
Pole/Aerial/Manhole
|
|
Net Weight(g)
|
4200
|
|
Protection Level
|
IP68
|
|
Diameter Of Fiber Cable
|
Oval port: 1(Φ8～18mm)
Round port(Φ8～18mm) |
|
Sealing Mode
|
Mechanical
|
|
Number Of Trays
|
Single:6
Ribbon:6/8 |
|
Capacity Of Tray
|
Single:24F
Ribbon:6/12F |
Feature of optical fiber closure
1. Vertical dome type fiber optic splice junction enclosure, with metal hoop;
2. ABS&PP alloy material used ensures the body strong and light;
3. The application of temperature: -40℃~65;
4. Aging resistance: with good stability of heat, thermal radiation, air, ozone and so on;
5. Corrosion resistance: strong resistance against acid, salt, oxidants and so on;
6. Sealing Technology: The reopen components, or reusable self-adhesive rubber strips to ensure a good air tightness and water resistance;
7. Close device: no need special tools for easy installation and re open;
Application of optical fiber closure
Aerial
underground
wall-mounted
pole-mounted
duct-mounted.
