Description of Loopback Adapter

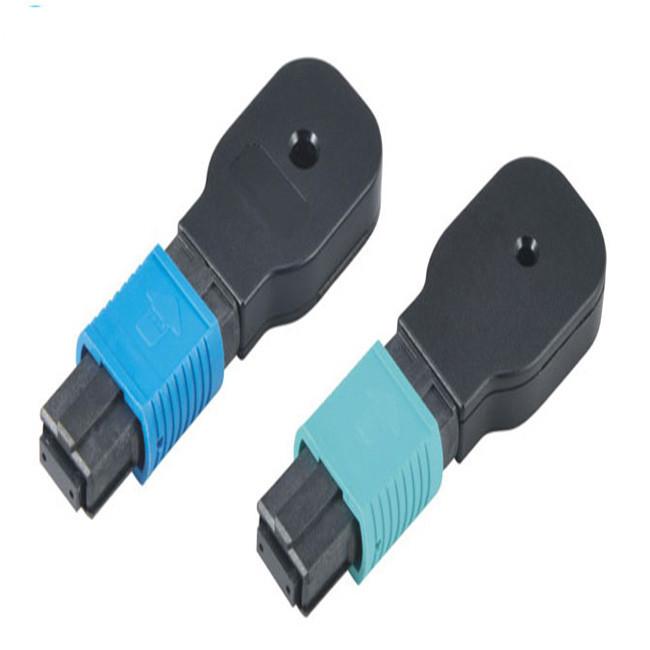

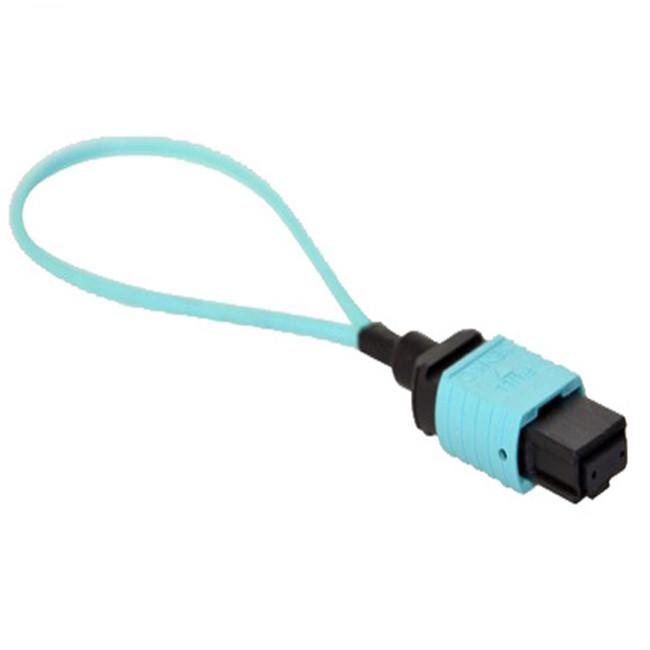

12 24 Fiber Optical MTP/MPO Loopback tester
In response to the demand for optical testing of 40GbE and 100GbE applications, DYS has released the 24-fiber
MPO/MTP optical loopback.
The device is available in single mode (yellow) or multimode versions (aqua) and incorporates a rigid, premium quality shell for
fiver protection and durability.Typically used for test and measurement procedures in laboratory and manufacturing environments,
the device is ideal for a multitude of applications require signal looping in a MPO/MTP form factor.
Specification of Loopback Adapter
| SPECIFFCATIONS | ||
| Type | Singlemode | Multimode |
| Insertion loss | PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB | PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB |
| Return loss | UPC≥ 50dB APC ≥ 60dB | - |
| Repeatability | ≤ 0.1db | |
| Changeability | ≤ 0.2dB | |
| Working temperature | -40 to 8o Celsius | |
| Durability | 1000 times | |
| Sustain tension | ≥ 100N | |
| Fiber | 9/125um , 50/125um, 62.5/125um, OM3 etc | |
| Diameter | 0.9mm | |
| Cores | duplex | |
| Insertion performance | Insert and pull 66 times,1L<0.5db | |
| The tensile resistance | 10N | |
| Operation temperature | -40℃~ +80℃ | |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores | |
| Jacket Color | Yeloow, Orange, Aqua, Purple | |
| Jacket Material | OFNR, OFNP, PVC, LSZH | |
| Storage Temperature | -40 to 75℃ | |
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color | Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Features of Loopback Adapter
High quality ferrule
Various test equipment
Low insertion loss
Optical fiber communication system
High return loss
Application of Loopback Adapter
Equipment interconnection
Device pig-tailling
Premise networks
Patch panel applications
Communications connections
LoopBack for network components testing
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields
FAQ
1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.
2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
