FTTH Fiber Optic Dome Closure 3 In 3 Out Black Fiber Optic Splice Closure IP68
FTTH Fiber Optic Dome Closure 3 In 3 Out Black Fiber Optic Splice Closure IP68
Description of Fiber Optic Splice Closure
Horizontal Closure provide space and protection for fiber optic cable splicing and joint. They can be mounted aerial, buried, or for underground applications. They are designed to be waterproof and dust proof. They can be used in temperature ranging from -40°C to 85°C, can accommodate 70 to 106 kpa pressure and the case are usually made of high tensile construction plastic.
Specification of Fiber Optic Splice Closure
|
Construction
|
Description
|
|
Max. Capacity
|
Single:144Cores
Ribbon:432/576Cores
|
|
Material
|
PP+GF
|
|
Dimension (mm)
|
460xФ225
|
|
Inlets/Outlets
|
1/4
|
|
Installation
|
Pole/Aerial/Manhole
|
|
Net Weight(g)
|
4200
|
|
Protection Level
|
IP68
|
|
Diameter Of Fiber Cable
|
Oval port: 1(Φ8～18mm)
Round port(Φ8～18mm) |
|
Sealing Mode
|
Mechanical
|
|
Number Of Trays
|
Single:6
Ribbon:6/8 |
|
Capacity Of Tray
|
Single:24F
Ribbon:6/12F |
|
Material
|
PC
|
|
ports
|
one oval three round
|
|
Cores
|
24
|
|
Color
|
black
|
|
Ip degree
|
68
|
|
inlet cable dimension
|
<16mm
|
|
Installation method
|
aerial mounting, pole mounting
|
|
Dimension
|
330mm(H)*φ110mm
|
|
No. of splice tray
|
2
|
|
capacity per tray
|
12
|
|

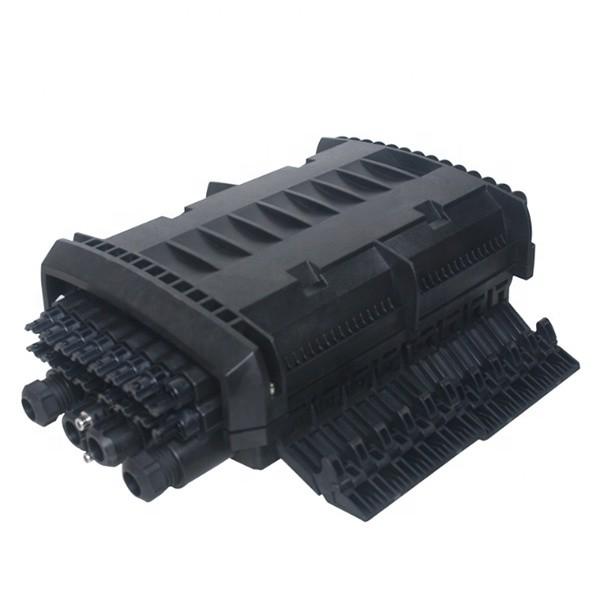

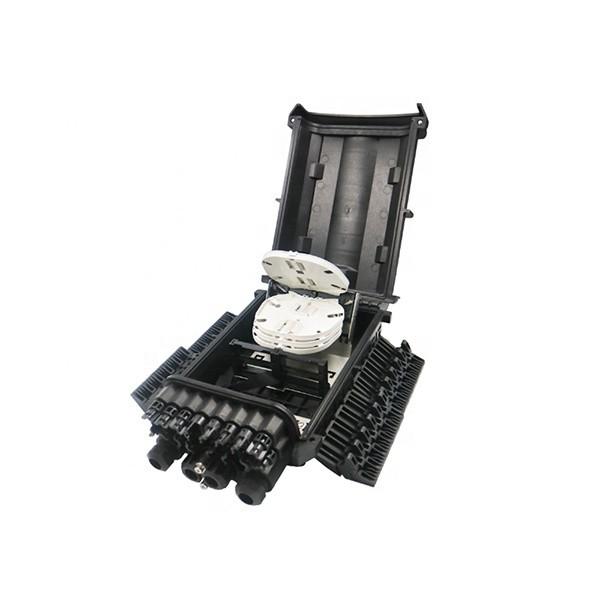

GJS-303 Fiber Optical Splice Box
|
|
|
Material
|
PP+Glass Fiber
|
|
Size
|
380*245*130mm
|
|
Cable Ports
|
1pc un-cut cable port, 2pcs output cable ports, 16pcs drop cable ports
|
|
Max. Capacity
|
96FO
|
|
Splice Tray
|
2 pcs ABS Material
|
|
Weight
|
4.5~5KG
|
|
Accessories
|
Protecting Sleeves, labelling paper, insulation tape, abrasive paper, wall-mount kits, sealing tape, nylon tie, earthing wire, plastic wrench
|
|
Sealing Way
|
Silicon Rubbersealing Ring
|
|
Installation Way
|
Aerial, wall or pole-Mounting
|
Feature of Fiber Optic Splice Closure
1. Water-proof design with IP-68 Protection level
2. Boltless design with no tools needed for open and close
3. mpact test : IK10 , Pull Force : 100N , Full rugged designe
4. All stainless metal plate and anti-rusting bolts , nuts
5. Suitable for the fusion splice or mechanical splice
6. Mechanical sealing with rubber protection tube
Application of Fiber Optic Splice Closure
1.Direct buried installation
2.Pole mounted installation
3.Wall mounted installation
4.Man hole and hand hole installation
5.FTTH backbone layer
The reason why Choose us:
1. On time delivery
2. Factory outlet
3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service
FAQ
1. How can I get your catalogue and price list?
Please let us know your email or contact us from website directly for our catalogue and price list.
2. Can you offer free samples?
Yes. we can provide free sample, but you should bear the shipping cost. It will return after you place the order from us.
3. How much will the shipping cost be?
It depends on the weight, volume and mode of transportation of your goods. We will choose the most suitable method according to your requirements.
4. Can you supply OEM products under our brand?
Yes, we are manufacturer, we accept OEM service, you just need send us your detailed requirements.
5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
