Flat Edge Angle 16mm Patterned Sapphire Substrates Front Surface
Flat Edge Angle 16±1.0mm Patterned Sapphire Substrates Front Surface Roughness ≤0.25nm
2inch Patterned Sapphire Substrates,LED Chip,Substrate Material
Patterned Sapphire Substrates (PSS) are fabricated and used in GaN-based LEDs in order to increase the internal quantum efficiency by reducing GaN crystal defects. They also can improve external quantum efficiency by increasing the reflection area.
R-plane sapphire substrates are preferred for hetero-epitaxial deposition of silicon. It is used in the manufacturing of semiconductor, microwave, and microelectronic IC applications.
| 2inch Patterned sapphire substrate | ||
| Item | Al2O3 |
|

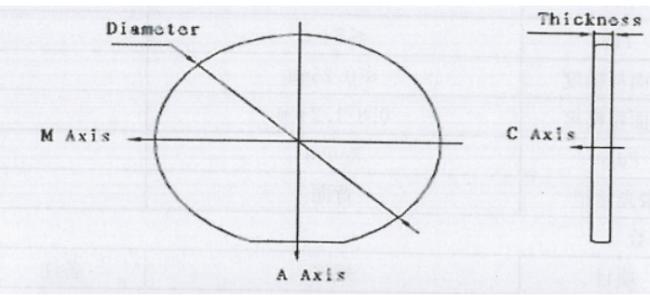

| Dimension | 50.80±0.10mm | |
| Thickness | 430±10μm | |
| Flat edge width |
16±1.0mm |
|
| Flat edge angle | A-plane±0.2o | |
| TTV | ≤5μm | |
| BOW | ≤-8~0μm | |
| Front Surface Roughness | ≤0.25nm | |
| Back Surface Roughness | 0.8~1.2μm | |
| Edge | Round | |
| Laser making | back | |
