Miniaturized Online Automatic PCB Depaneling Machine High Precision

Miniaturized Online Automatic Depaneling Machine EXE-180M

Online Automatic Depaneling Machine Parameters:

Introduction to the equipment configuration of the miniaturized online automatic depaneling machine EXE-180M:

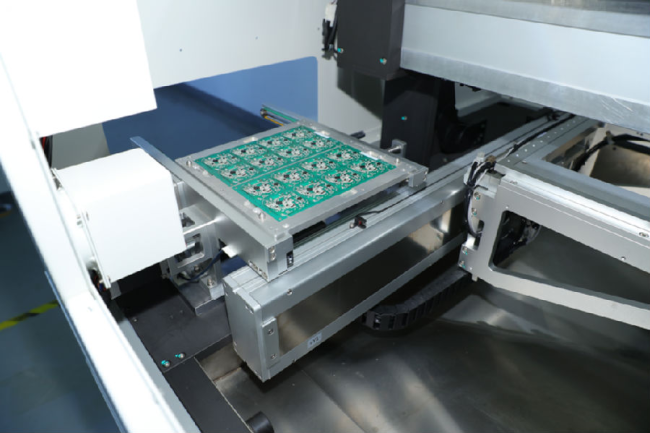

(1): Clamp-type plate-taking structure

1. Place the product sub-board jig on the processing platform sub-board. After the processing is completed, the sub-board jig is clamped and placed on the track to flow into the lower process.

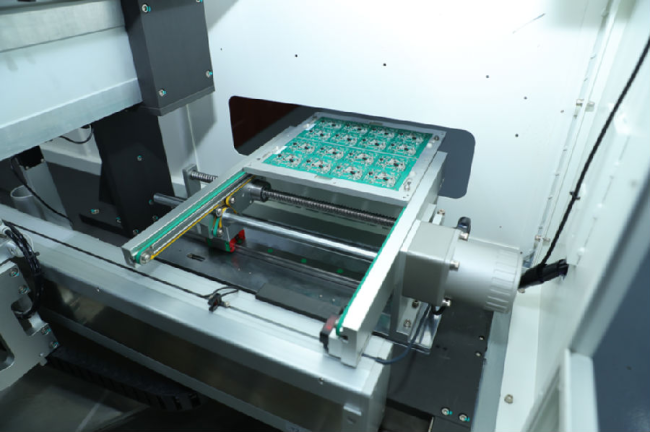

(2): The special product sub-board jig enters the track mode

(3): Special product sub-board jig rail discharge
1. After the product is cut, the reclaiming gripper clamps the entire product jig and places it on the discharge track to transport it to the next production process.

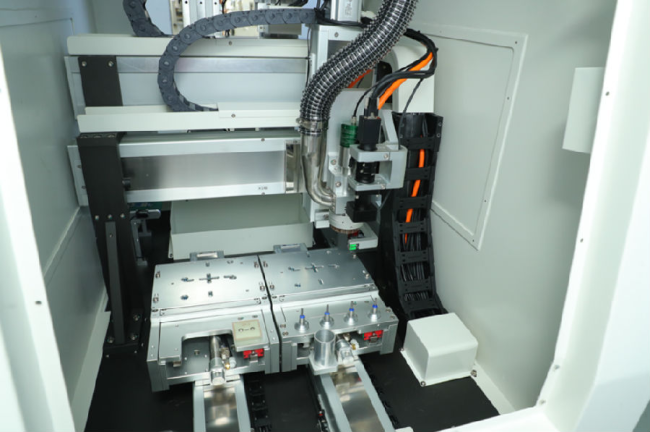

(4): Automatic tool change mode
1. The miniaturized online splitter adopts an automatic tool-changing spindle imported from Germany. It saves time, realizes automation, reduces human factors, has high precision and strong stability
2. Built-in four sets of milling cutter magazines, which are convenient for automatic replacement of milling cutters and meet the needs of sub-panel processing.

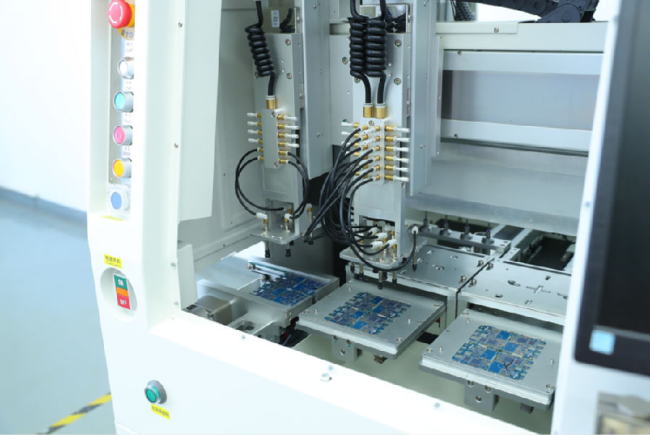

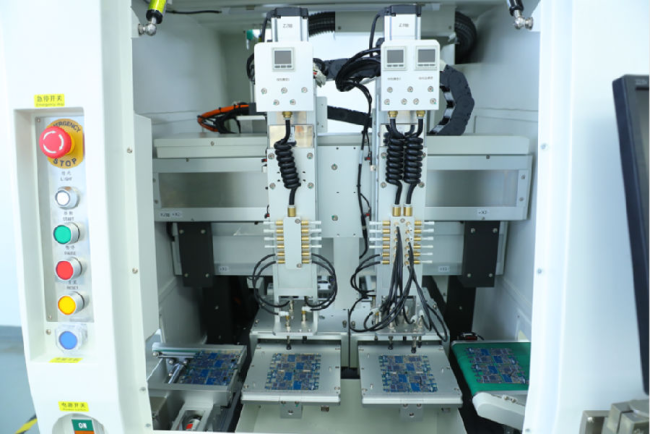

(5): The structure of the vacuum suction cup to take the plate
1. Pick and place device: automatic loading and unloading (modular vacuum suction claw, vacuum device, can be independently controlled)
2. Transmission structure: X2 axis moves Z2, Z3 axis sucks, AC servo motor control.
3. Board taking speed: 0-1000mm/sec (can be set)

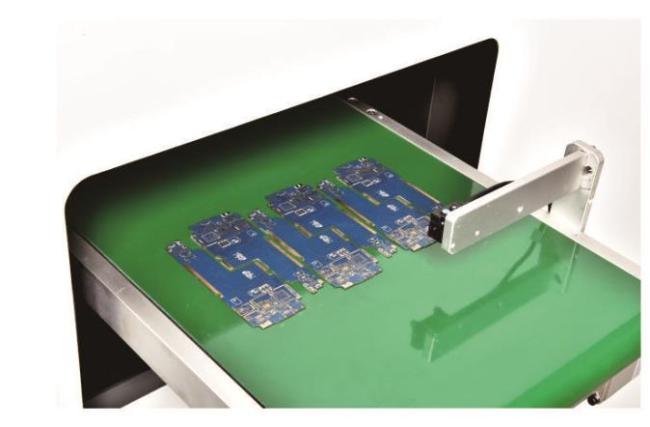

(6): Special product belt discharging method
1. The vacuum suction cup take-up shaft sucks the cut product one-time vacuum suction and places it on a special product fixture to transport it to the next production process.
