Fully Automatic PCB Depaneling Machine With High Speed NSK Spindle

Fully Automatic PCB Depaneling Machine EXE-880F

Fully Automatic PCB Depaneling Machine EXE-880F​ Parameters:

 Introduction To Equipment Configuration:

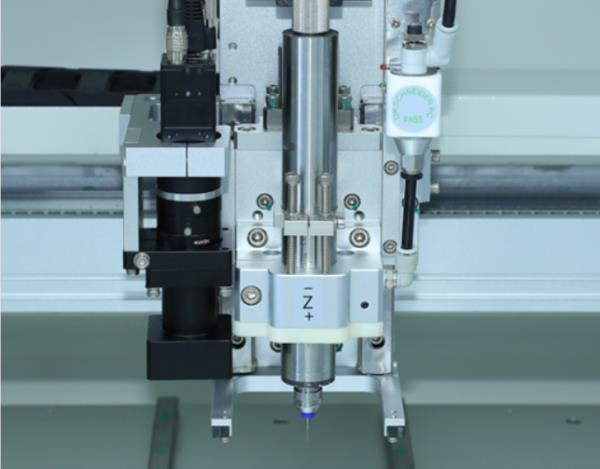

1. The fully automatic PCB splitting machine adopts a high-speed NSK spindle to cut and split the board, which greatly reduces the cutting stress, and has high precision, small inertia and fast response.

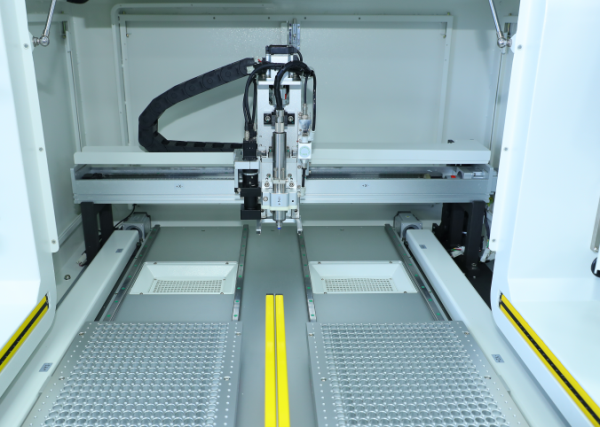

2. Grating safety facilities are installed in the PCB pick-and-place area of ​​​​the double Y-axis worktable to avoid manual misoperation and meet public safety requirements.

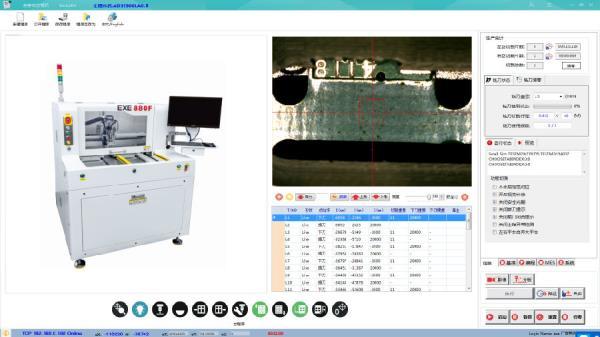

3. The window operation interface is friendly to switching between Chinese and English, and the window operation interface is shown in the figure. The editing program is simple and can quickly complete the multi-point program.
4. Multi-layer management authority of software users to prevent misuse and other behaviors.

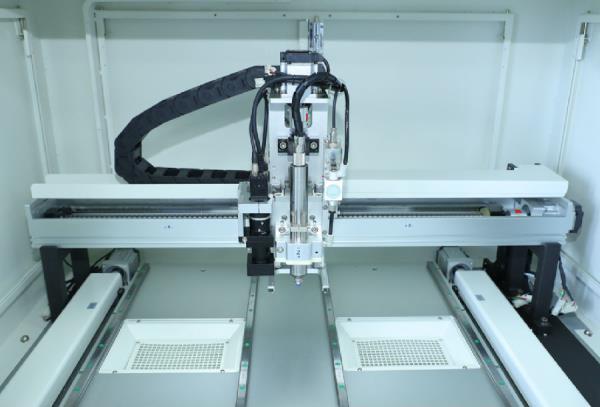

5. The vacuuming under the automatic PCB splitter adopts a sealed design, and the suction port adopts a 45-degree oblique angle to reduce the eddy current generated by the dust inside.

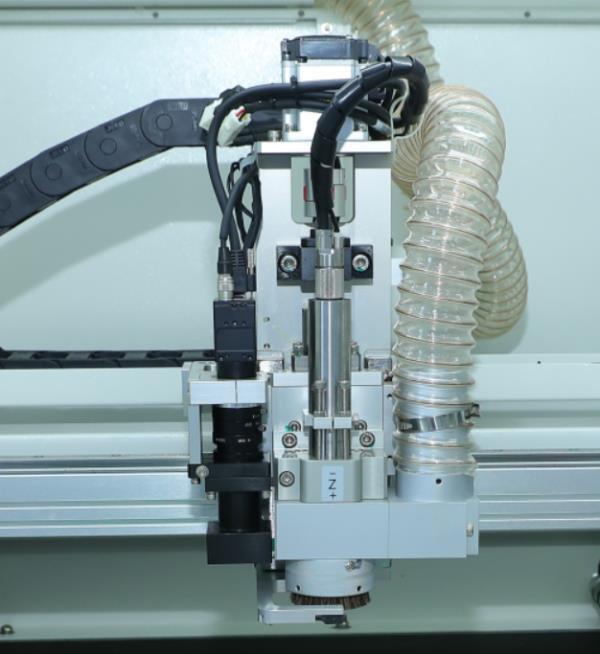

6. The upper vacuuming structure (optional) adopts an electrostatic brush to seal the cutting point, and independently vacuums the single cutting point, which greatly improves the vacuuming effect.

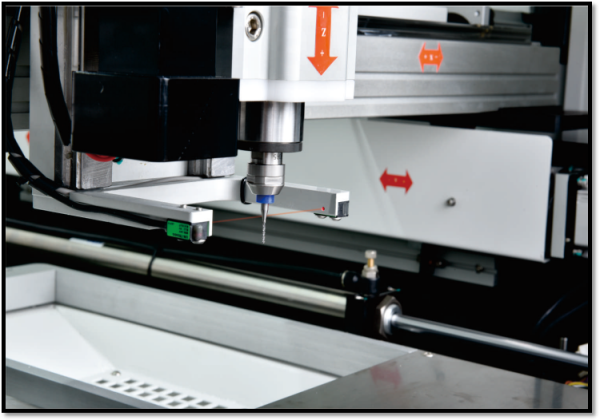

7. The milling cutter detection system adopts a photoelectric sensor to monitor the milling cutter status in real-time, effectively preventing the phenomenon of continuing operation after the cutter is broken.

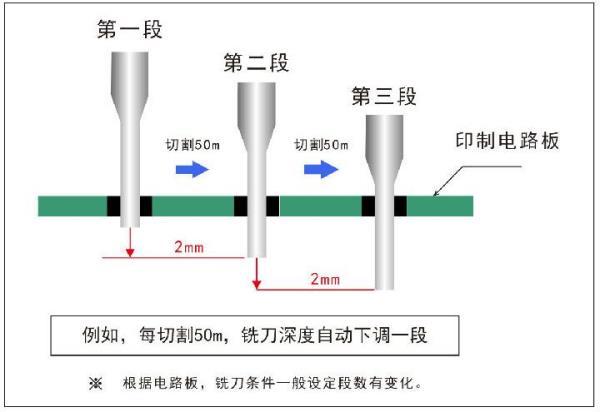

8. The software sets the milling cutter segmentation function, automatically lowers the cutter compensation, prolongs the service life of the milling cutter and reduces the cost.

Quality Assurance And After-sales Service:
1. The overall equipment warranty period of the automatic PCB splitter is one year, and after-sales maintenance and replacement are provided free of charge if there are quality problems.
2. The after-sales service personnel are all senior professional and technical personnel of the company. After the company's formal training, they can work alone after passing the examination.
3. After the after-sales department receives the equipment failure notification, if the equipment fails to work normally, it will reply within half an hour in the Pearl River Delta, and dispatch personnel to the scene within 2 hours to solve the problem;

Respond within half an hour outside the Pearl River Delta, and then dispatch after-sales personnel to the scene to solve the problem within 24 hours according to the specific situation.

(If the startup cannot be produced normally, the after-sales personnel communicate with the customer and arrive at the scene within the time required by the customer).
4. The company's after-sales personnel are on standby 24 hours a day, regardless of Saturdays, Sundays and holidays.
5. After the equipment arrives at your company, our company arranges engineering and technical personnel to install and debug it.
6. Our company can arrange after-sales technicians to stay in the customer's company for three days, responsible for training and technical guidance (the time can be extended according to the customer's appropriate requirements) until they are accepted.
7. Our company's after-sales technicians are responsible for comprehensive training. Your company's operators and technicians will provide full service to the installation and operation of our company's equipment without reservation.
8. Under the premise of the customer company's request, our company can help the customer company to carry out the operation and debugging test of the sub-board machine for its technical personnel.
