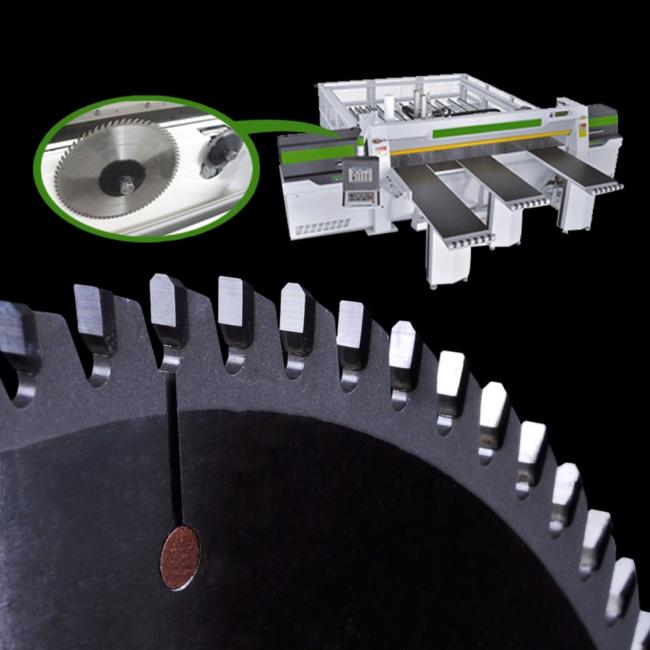

Machines: Panel sizing machine and double milling machine.
Application: To size board with/without laminated cover (MDF, chipboard, plywood and etc.)
Features: New CP technology, triple chip flat (TP) carbide tipped.
Advantages: Optimized tooth profile parameters improve the cutting quality, wear-resistant and stable cutting.

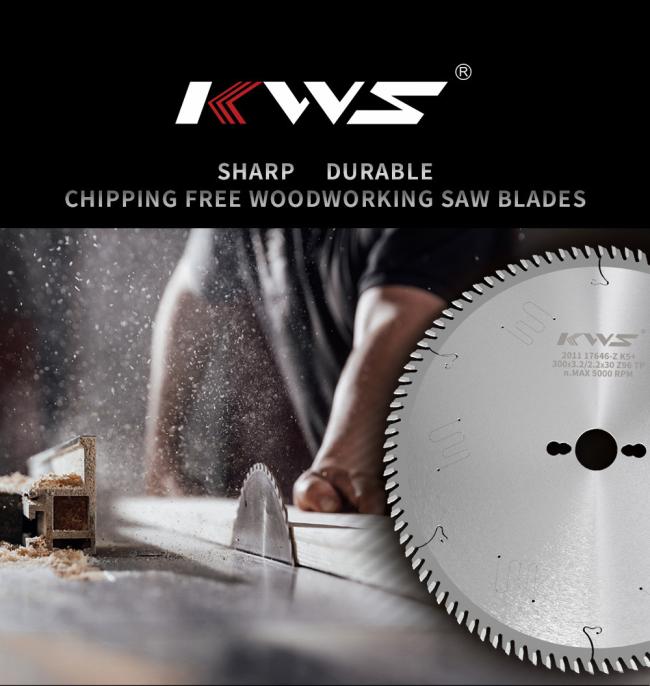

The saw blade has an outer diameter of 355mm and a hole of 25.4mm. It is suitable for sizing board with/without laminated cover (MDF, chipboard, plywood and etc).
|
Diameter(mm)
|
Arbor(mm)
|
Thickness(mm)
|
Teeth
|
Tooth Shape
|
|
355
|
60
|
3.5
|
84
|
V
|
|
355
|
25.4/30
|
3.5
|
96
|
TP
|
|
350
|
30
|
4.0
|
84
|
TP
|
|
350
|
30
|
4.4
|
72
|
TP
|
|
350
|
30/60/75
|
4.4
|
84
|
TP
|
| 350 |
80
|
3.5
|
84
|
TP
|
|
360
|
60/75
|
4.4
|
84
|
TP
|
|
380
|
60
|
3.5
|
84
|
TP
|
| 380 |
60
|
4.4
|
72
|
TP
|
| 380 |
60/75/80
|
4.4
|
84
|
TP
|
|
380
|
60
|
4.4
|
96
|
TP
|
|
400
|
30/60/75/80
|
4.4
|
84
|
TP
|
|
400
|
80
|
4.4
|
72
|
TP
|
|
400
|
60/80
|
4.4
|
72
|
W
|
|
400
|
60
|
4.4
|
84
|
W
|
|
400
|
60
|
4.4
|
96
|
TP
|
|
430
|
80
|
4.4
|
72
|
TP
|
| 450 | 60 | 4.8 | 72 | TP |
| 450 | 60/75/80 | 4.8 | 84 | TP |
1. High quality steel plate, stable plate body, not easy to deformation.
2. Cutter head CNC sharpening, high precision knife edge.

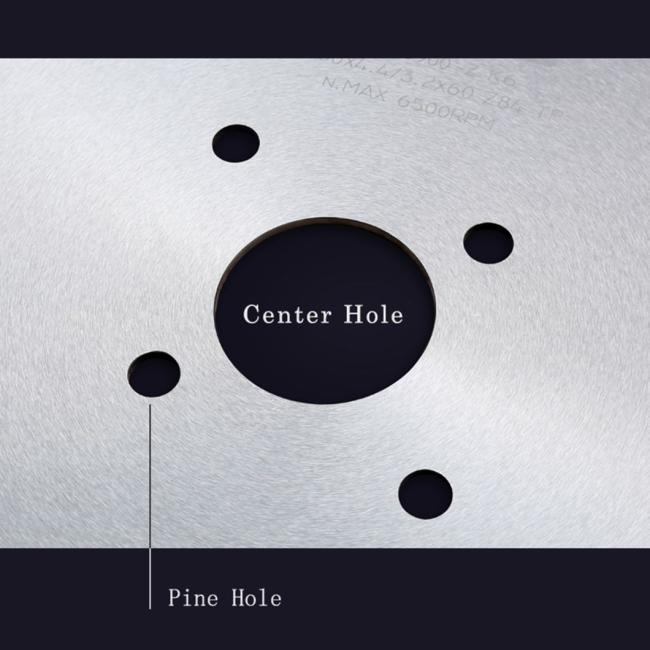

3. Chamfer design of center hole makes install and uninstall more convenient.
4. Copper nail and expansion design can reduce noise, dissipate heat and prevent deformation.

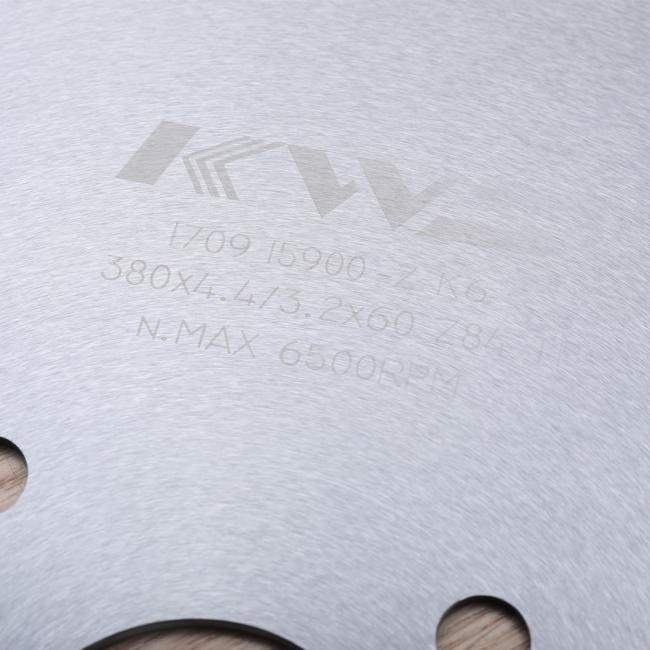

5. Laser marking of product information makes anti-counterfeiting easier.
6. Stress ring technology, reinforcement plate structure.
