300mm 96t Customized TCT Universal Saw Blade For Wood MDF Plywood Laminated Panels For Table Saw
300mm 96t Customized TCT Universal Saw Blade For Wood / MDF / Plywood / Laminated Panels For Table Saw
Product Description
Machines: Table Saw, panel saw and cross cut saw machine etc.
Application: Rip&cross cut for solid wood (hard&soft); laminated panels like particle board, MDF and plywood etc.
Features: New CP technology. Alternate top bevel (W), Triple chip flat (TP) and BA5 (ATB+Flat) etc.
Advantages: High grade of carbide tipped and steel plate provides perfect cutting performance and working service life.

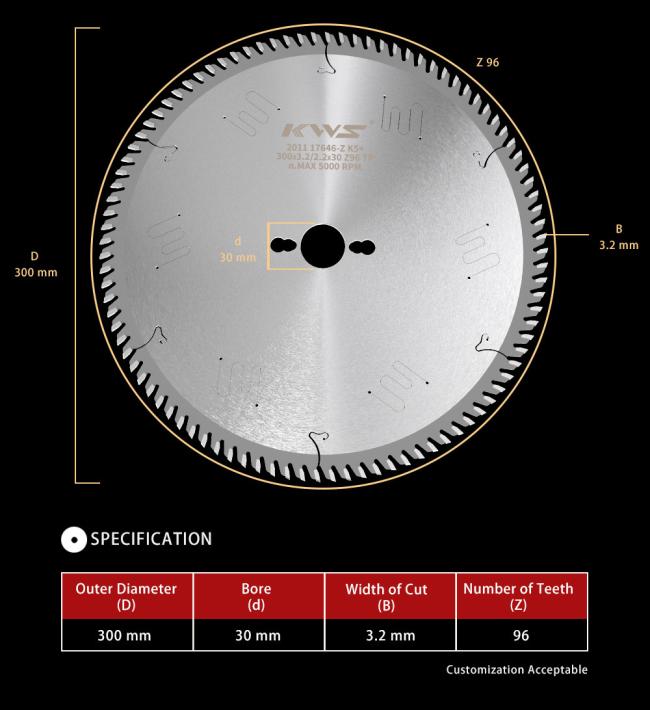

The saw blade has an outer diameter of 300mm and a hole of 30mm. It is suitable for cutting all kinds of plates on the table saw with the scoring saw. ATB teeth suitable for cutting all kinds of solid wood plate, TCG teeth suitable for cutting veneer materials.
|
Diameter(mm)
|
Arbor(mm)
|
Thickness(mm)
|
Teeth
|
Tooth Shape
|
|
180
|
30
|
3.2
|
40
|
W
|
|
180
|
30
|
3.2
|
60
|
W
|
|
200
|
30
|
3.2
|
60
|
W
|
|
230
|
30
|
3.2
|
60
|
W
|
|
250
|
30
|
3.2
|
80
|
TP
|
|
300
|
30
|
3.2
|
48
|
W
|
|
300
|
30
|
3.2
|
60
|
W
|
|
300
|
30
|
3.2
|
72
|
TP
|
|
300
|
30
|
3.2
|
72
|
W
|
|
300
|
30
|
3.2
|
96
|
TP
|
|
350
|
30
|
3.5
|
60
|
W
|
|
350
|
30
|
3.5
|
72
|
TP
|
|
350
|
30
|
3.5
|
72
|
W
|
|
350
|
30
|
3.5
|
84
|
TP
|
|
350
|
30
|
3.5
|
84
|
W
|
|
350
|
30
|
3.5
|
108
|
TP
|
|
350
|
30
|
3.5
|
108
|
W
|

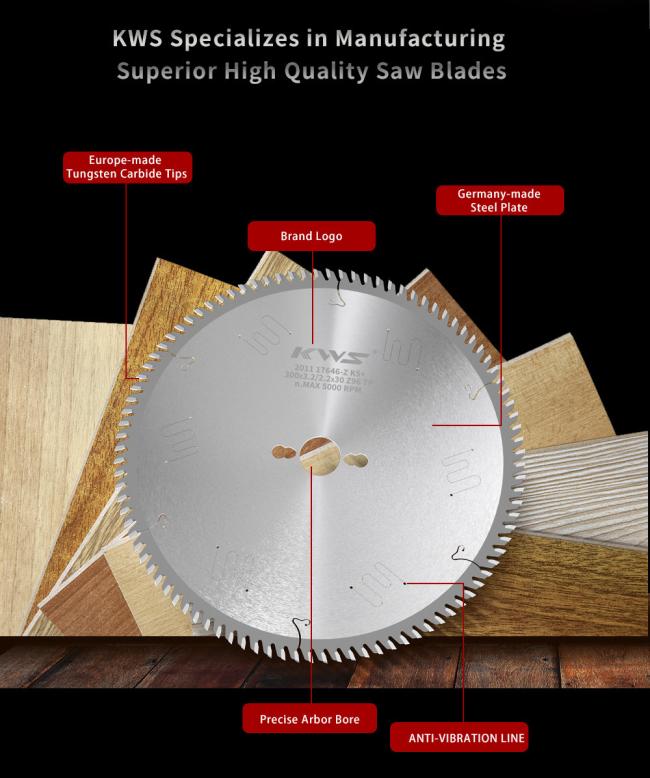

1. High quality steel plate, stable plate body, not easy to deformation.
2. Cutter head CNC sharpening, high precision knife edge.
3. Chamfer design of center hole makes install and uninstall more convenient.
4. Copper nail and expansion design can reduce noise, dissipate heat and prevent deformation.
5. Laser marking of product information makes anti-counterfeiting easier.
6. Stress ring technology, reinforcement plate structure.
