Metal Pipe Cutting Circular Saw Blade For Cold Saw Machines Steel Cold Saw
Price:
Negotiation
MOQ:
5 pieces
Delivery Time:
Subject to stock status
Brand:
KWS
Product Description

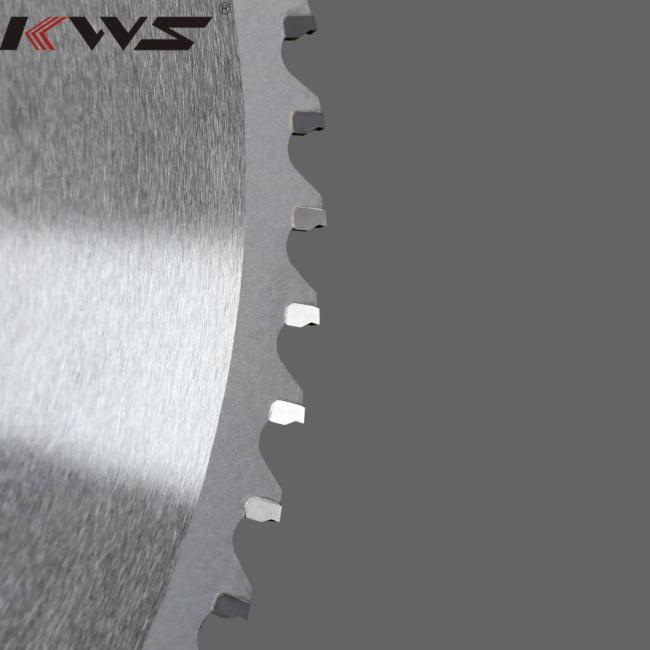

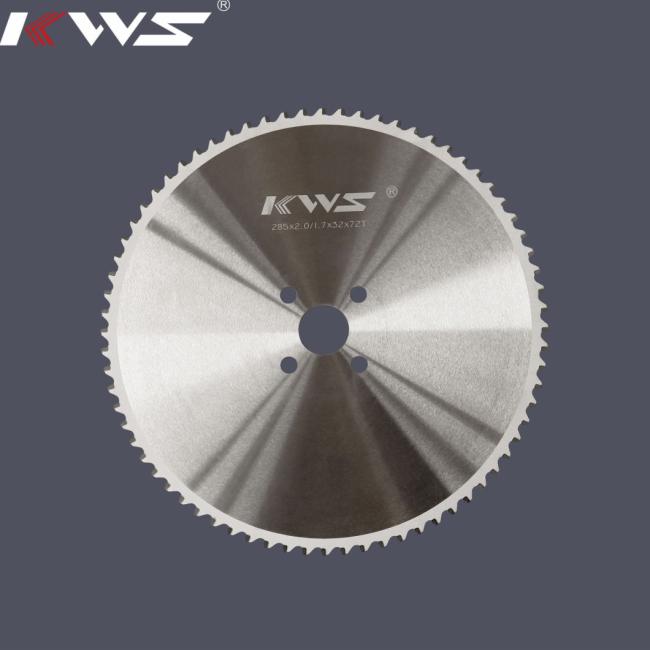

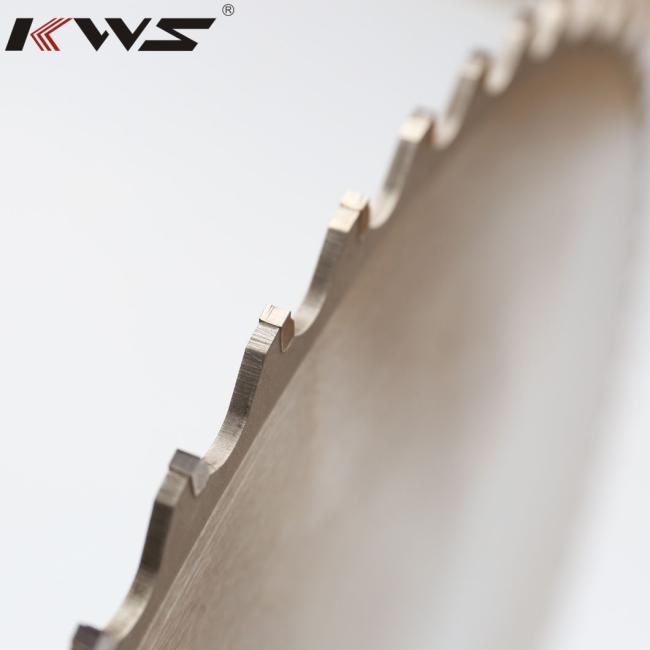

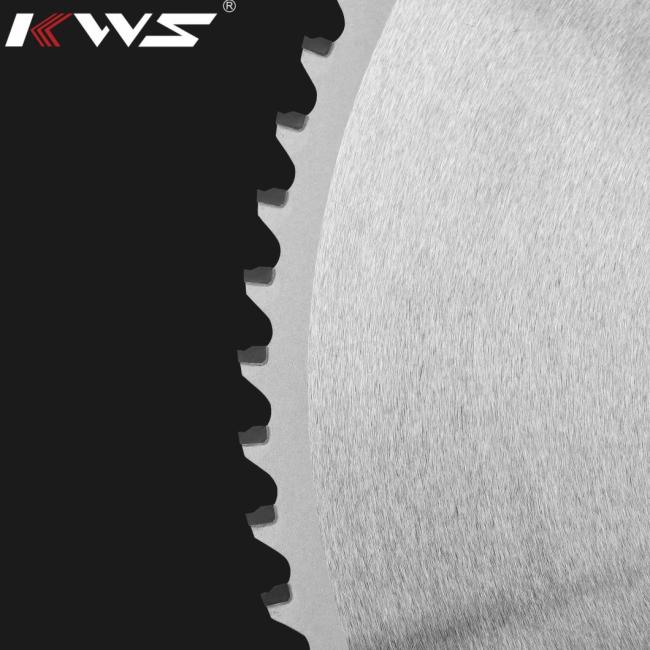

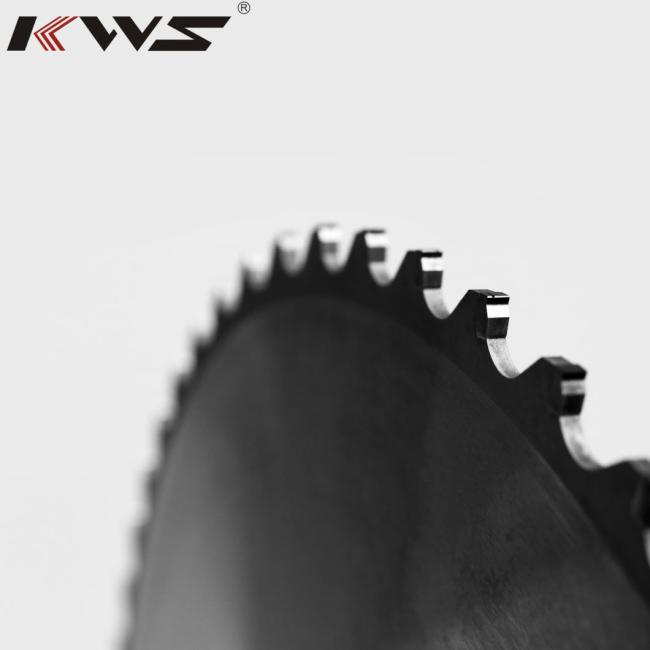

Metal Pipe Cutting Circular Saw Blade For Cold Saw Machines Steel Cold Saw
PRODUCT INFORMATION
During the sawing process of the metal, the heat generated by the saw blade sawing the workpiece is transferred to the sawdust by the saw teeth, and the workpiece and the saw blade are kept cool, so the name is cold saw. This saw blade is made of excellent cermet and has good wear resistance and weldability. When cutting billets such as carbon steel and alloy steel, stable cutting life and good cutting quality can be obtained.cold saw
The saw blade is made of European imported steel and high quality ceramic alloy. With a special tooth angle, the cutting speed is fast and can be repaired many times. Advanced production testing equipment and strict quality control system ensure excellent quality and stability. High cost performance and long service life can effectively reduce the production cost of customers. Suitable for CNC metal circular sawing machines, cutting cast iron, carbon steel, steel rods and steel pipes.
SPECIFICATIONS
RECOMMEND PARAMETERS
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
![Kws Circular Saw Blade for Cutting Metal Pipe Cold Saw for Cold Saw Machines]()
During the sawing process of the metal, the heat generated by the saw blade sawing the workpiece is transferred to the sawdust by the saw teeth, and the workpiece and the saw blade are kept cool, so the name is cold saw. This saw blade is made of excellent cermet and has good wear resistance and weldability. When cutting billets such as carbon steel and alloy steel, stable cutting life and good cutting quality can be obtained.cold saw
The saw blade is made of European imported steel and high quality ceramic alloy. With a special tooth angle, the cutting speed is fast and can be repaired many times. Advanced production testing equipment and strict quality control system ensure excellent quality and stability. High cost performance and long service life can effectively reduce the production cost of customers. Suitable for CNC metal circular sawing machines, cutting cast iron, carbon steel, steel rods and steel pipes.
SPECIFICATIONS
Production Information
| Application | For pipes cutting |
| Equipment | High precise cold saw machine |
| Recommended linear velocity | SZ=0.040mm--0.070mm |
| Material | Tubular materials stainless steel excluded |
| Tips | Cermet alloy |
| Features | 1. Special anti-vibration teeth 2. Special angle design 3. Little resonance 4. Strong impact resistance 5. Reliable performance |
Cutting Amount and Cutting Speed
■ Cutting Amount Per Tooth(fz)
| Fz (mm/blade)=F/N*Z |
| Fz: The amount of cut per tooth |
| F: Feed speed (mm/min) |
| N: Equipment spindle speed (rpm) |
| Z: Number of teeth |
■ Recommended Parameters
| Bar Fz=0.04~0.07 (mm/blade) |
| Pipe Fz=0.03~0.05 (mm/blade) |
■ Cutting Speed (Saw Blade Line Speed) (v)
| V(m/min)=π*D*N/1000 |
| V: Cutting line speed (m/min) |
| D: Outer diameter (mm) |
| N: Equipment spindle speed (rpm) |
■ Recommended Parameters
| Medium and low carbon steel V=100~130 (m/min) |
| High carbon, alloy steel V=70~100 (m/min) |
Specification
| Pin Hole/pin Hole | Bore |
| 4/9/50, 4/11/63 | 32.00 |
| 4/11/63, 4/11/90, 2/12/65, 2/15/80 | 40.00 |
| 4/11/90, 4/16/80, 4/21/90 | 50.00 |
| 1 | 250 | 32 | 2 | 120 | 250*32*2.0*120 |
| 2 | 285 | 32 | 2 | 54 | 285*32*2.0*54 |
| 3 | 285 | 32 | 2 | 60 | 285*32*2.0*60 |
| 4 | 285 | 32 | 2 | 80 | 285*32*2.0*80 |
| 5 | 285 | 32 | 2 | 100 | 285*32*2.0*100 |
| 6 | 285 | 32 | 2 | 120 | 285*32*2.0*120 |
| 7 | 315 | 32 | 2.25 | 60 | 315*32*2.25*60 |
| 8 | 315 | 32 | 2.25 | 72 | 315*32*2.25*72 |
| 9 | 315 | 32 | 2.25 | 80 | 315*32*2.25*80 |
| 10 | 315 | 32 | 2.25 | 100 | 315*32*2.25*100 |
| 11 | 315 | 32 | 2.25 | 120 | 315*32*2.25*120 |
| 12 | 315 | 32 | 2.25 | 140 | 315*32*2.25*140 |
| 13 | 360 | 40 | 2.6 | 60 | 360*40*2.6*60 |
| 14 | 360 | 40 | 2.6 | 72 | 360*40*2.6*72 |
| 15 | 360 | 40 | 2.6 | 80 | 360*40*2.6*80 |
| 16 | 360 | 40 | 2.6 | 100 | 360*40*2.6*100 |
| 17 | 360 | 40 | 2.6 | 120 | 360*40*2.6*120 |
| 18 | 380 | 40 | 2.6 | 60 | 380*40*2.6*60 |
| 19 | 400 | 50 | 2.7 | 80 | 400*50*2.7*80 |
| 20 | 400 | 50 | 2.7 | 100 | 400*50*2.7*100 |
| 21 | 425 | 50 | 2.7 | 40 | 425*50*2.7*40 |
| 22 | 425 | 50 | 2.7 | 60 | 425*50*2.7*60 |
| 23 | 425 | 50 | 2.7 | 80 | 425*50*2.7*80 |
| 24 | 425 | 50 | 2.7 | 100 | 425*50*2.7*100 |
| 25 | 460 | 50 | 2.7 | 40 | 460*50*2.7*40 |
| 26 | 460 | 50 | 2.7 | 60 | 460*50*2.7*60 |
| 27 | 460 | 50 | 2.7 | 72 | 460*50*2.7*72 |
| 28 | 460 | 50 | 2.7 | 80 | 460*50*2.7*80 |
| 29 | 460 | 50 | 2.7 | 100 | 460*50*2.7*100 |
| 30 | 460 | 50 | 2.7 | 120 | 460*50*2.7*120 |
| 31 | 458 | 50 | 2.7 | 60 | 485*50*2.7*60 |
| 32 | 485 | 50 | 2.7 | 72 | 485*50*2.7*72 |
| 33 | 485 | 50 | 2.7 | 80 | 485*50*2.7*80 |
| 34 | 485 | 50 | 2.7 | 100 | 485*50*2.7*100 |
| 35 | 520 | 50 | 3 | 60 | 520*50*3.0*60 |
| 36 | 520 | 50 | 3 | 72 | 520*50*3.0*72 |
| 37 | 520 | 50 | 3 | 80 | 520*50*3.0*80 |
| 38 | 560 | 50 | 3 | 60 | 560*50*3.0*60 |
| 39 | 630 | 80 | 3.4 | 60 | 630*80*3.4*60 |
| 40 | 630 | 80 | 3.4 | 72 | 630*80*3.4*72 |
| 41 | 630 | 80 | 3.4 | 80 | 630*80*3.4*80 |
| 42 | 630 | 80 | 3.4 | 100 | 630*80*3.4*100 |
| D (mm) |
Z | Cutting Material Thickness(mm) | ||||||||||||||||||||||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 | 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | ||
| 250 | 54 | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 60 | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
| 72 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 285 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 72 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 360 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 420 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 460 | 40 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||
| 60 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 560 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||
