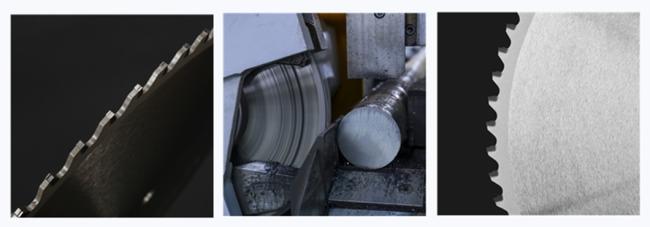

Cold Cut Saw Blade For Steel , Steel Pipe Cutting Blade Anti Vibration
Cold Cut Saw Blade For Steel , Steel Pipe Cutting Blade Anti Vibration
PRODUCT DESCRIPTION
Imported cermet alloy (The cermet alloy is a structural material composed of a hard ceramic and a metal or alloy binder phase. The cermet retains the high strength, high hardness, wear resistance, high temperature resistance, oxidation resistance and chemical stability of the ceramic, and has good metal toughness and plasticity. Features: low density, high hardness, wear resistance, good thermal conductivity, will not be brittle due to quenching or sudden heat.) combined with high-precision grinding equipment, ensure the accuracy of each knife cutting. The raw material of the saw blade body is made of high quality steel plate imported from Germany, which further ensures the stability and durability of the saw blade work. The special tooth shape designed for metal cutting guarantees the stability and superiority of metal processing and greatly improves the service life of the saw blade.
This product is widely used in decoration, automobile, medical equipment, furniture accessories, electronic radiator, sports equipment, curtain doors and Windows and other fields.
ADVANTAGES
1. Imported steel plate and ceramic alloy, stable processing and good cutting effect.
2. Special tooth shape and angle design ensure smooth cutting.
3. High concentricity of center hole prevents yaw and saw blade slippage.
4. Smooth cutting surface , high efficency and longer cutting life.
5. Low noise, no bur, no deformation and constantly teeth.
PRODUCT SPECIFICATION:
Cutting Amount and Cutting Speed
■ Cutting Amount Per Tooth(fz)
| Fz (mm/blade)=F/N*Z |
| Fz: The amount of cut per tooth |
| F: Feed speed (mm/min) |
| N: Equipment spindle speed (rpm) |
| Z: Number of teeth |
■ Recommended Parameters
| Bar Fz=0.04~0.07 (mm/blade) |
| Pipe Fz=0.03~0.05 (mm/blade) |
■ Cutting Speed (Saw Blade Line Speed) (v)
| V(m/min)=π*D*N/1000 |
| V: Cutting line speed (m/min) |
| D: Outer diameter (mm) |
| N: Equipment spindle speed (rpm) |
■ Recommended Parameters
| Medium and low carbon steel V=100~130 (m/min) |
| High carbon, alloy steel V=70~100 (m/min) |
Specification
| Pin Hole/pin Hole | Bore |
| 4/9/50, 4/11/63 | 32.00 |
| 4/11/63, 4/11/90, 2/12/65, 2/15/80 | 40.00 |
| 4/11/90, 4/16/80, 4/21/90 | 50.00 |
| NO | Specification | Diameter | Center Hole | Cutting Width | Tooth | Body Thickness |
| 1 | 250*32*2.0 | 250 | 32 | 2.0 | 54-120 | 1.7/1.75 |
| 2 | 285*32*2.0 | 285 | 32 | 2.0 | 54-120 | 1.7/1.75 |
| 3 | 315*32*2.25 | 315 | 32 | 2.25 | 60-140 | 2 |
| 4 | 360*40*2.6 | 360 | 40 | 2.6 | 60-120 | 2.25/2.3 |
| 5 | 425*50*2.7 | 425 | 50 | 2.7 | 40-100 | 2.25/2.3 |
| 6 | 460*50*2.7 | 460 | 50 | 2.7 | 40-120 | 2.25/2.3 |
| 7 | 485*50*2.7 | 485 | 50 | 2.7 | 72 | 2.25/2.3 |
