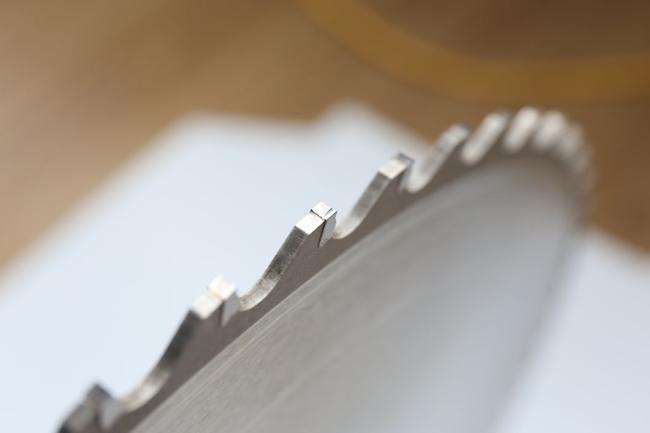

Aluminum Cutting TCT Circular Cold Saw Blade Smooth Cutting Cold Metal Chop Saw
Price:
Negotiation
MOQ:
5 pieces
Delivery Time:
Subject to stock status
Brand:
KWS
Product Description
Aluminum Cutting TCT Circular Cold Saw Blade Smooth Cutting Cold Metal Chop Saw
Production Information
| Application | For all kinds of aluminum material cutting |
| Equipment | Manual device, mitre saw, CNC center |
| RPM | FZ=0.03mm--0.050mm |
| Cutting Material | Plastic steel, aluminum profile aluminum bar, non-ferrous metal, etc. |
| Tips | TCT, PCD |
| Features |
1. Professional silence line design 2. Low cutting noise 3. Smooth cutting without burr 4. Durable |
PRODUCT INFORMATIONDuring the sawing process of the metal, the heat generated by the saw blade sawing the workpiece is transferred to the sawdust by the saw teeth, and the workpiece and the saw blade are kept cool, so the name is cold saw. This saw blade is made of excellent cermet and has good wear resistance and weldability. When cutting billets such as carbon steel and alloy steel, stable cutting life and good cutting quality can be obtained.cold saw
The saw blade is made of European imported steel and high quality ceramic alloy. With a special tooth angle, the cutting speed is fast and can be repaired many times. Advanced production testing equipment and strict quality control system ensure excellent quality and stability. High cost performance and long service life can effectively reduce the production cost of customers. Suitable for CNC metal circular sawing machines, cutting cast iron, carbon steel, steel rods and steel pipes.
SPECIFICATIONS
| NO | Specification | Diameter | Center Hole | Cutting Width | Tooth | Body Thickness |
| 1 | 250*32*2.0 | 250 | 32 | 2.0 | 54-120 | 1.7/1.75 |
| 2 | 285*32*2.0 | 285 | 32 | 2.0 | 54-120 | 1.7/1.75 |
| 3 | 315*32*2.25 | 315 | 32 | 2.25 | 60-140 | 2 |
| 4 | 360*40*2.6 | 360 | 40 | 2.6 | 60-120 | 2.25/2.3 |
| 5 | 425*50*2.7 | 425 | 50 | 2.7 | 40-100 | 2.25/2.3 |
| 6 | 460*50*2.7 | 460 | 50 | 2.7 | 40-120 | 2.25/2.3 |
| 7 | 485*50*2.7 | 485 | 50 | 2.7 | 72 | 2.25/2.3 |
RECOMMEND PARAMETERS
| D (mm) |
Z | Cutting Material Thickness(mm) | ||||||||||||||||||||||||||||||||
| 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 | 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 | ||
| 250 | 54 | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 60 | √ | √ | √ | √ | ||||||||||||||||||||||||||||||
| 72 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 285 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 72 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 360 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||||
| 420 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 460 | 40 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||
| 60 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||
| 560 | 60 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||
| 80 | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||||||||||||||||||
| 100 | √ | √ | √ | √ | √ | √ | √ | |||||||||||||||||||||||||||
